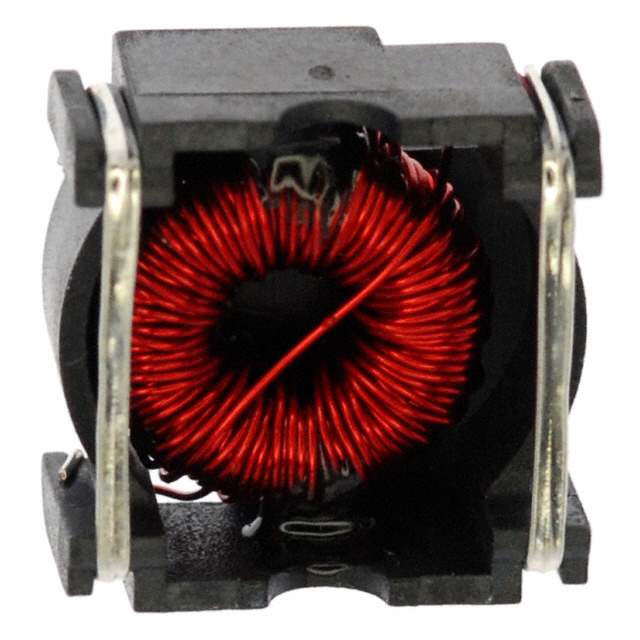

PE-53821SNLT Real Image
Same model may have multiple batches, images only for reference.

PE-53821SNLT

Part No PE-53821SNLT
Manufacturer Pulse
Catalog Fixed Inductors
Description Inductor Power Toroid 78uH 20% 0.82A 0.3Ohm DCR T/R / FIXED IND 78UH 820MA 300 MOHM
Datasheet
PE-53821SNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Power
Packaging Tape and Reel
Type Toroidal
Inductance 78μH
Tolerance ±20%
Current Rating (Amps) 820mA
Shielding Shielded
DC Resistance (DCR) 300mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.570" L x 0.565" W (14.48mm x 14.35mm)
Height - Seated (Maximum) 0.360" (9.14mm)
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 758677-PE-53821SNLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PE
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian PE-53821SNLT CAD Model

Description

The Pulse Electronics Power 758677-PE-53821SNLT is a shielded toroidal inductor.

  • Inductance: 78μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 300mOhm
  • Temperature Range: -40°C to 130°C
  • Mounting Style: SMD
  • Packaging: Tape and Reel
  • Height: 0.360" (9.14mm)
  • Dimension: 0.570" L x 0.565" W (14.48mm x 14.35mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 200
