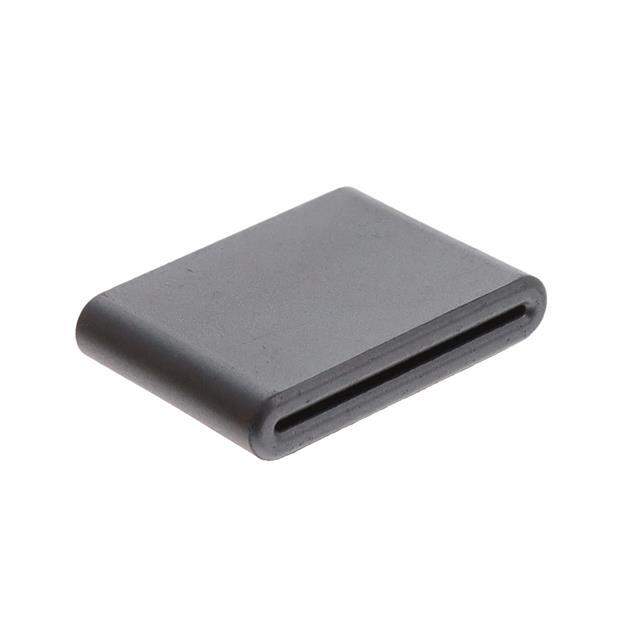

7427810 Real Image1 7427810 Real Image2
Same model may have multiple batches, images only for reference.
7427810 Real Image1 7427810 Real Image2
7427810 Real Image1 7427810 Real Image2
Same model may have multiple batches, images only for reference.

7427810

Part No 7427810
Manufacturer Wurth Electronics Inc
Catalog Cable Ferrites
Description WE-FLAT FERRITE FOR FLEXIBLE PRI / Solid Free Hanging Ferrite Core 130Ohm @ 100MHz ID 0.945" W x 0.031" H (24.00mm x 0.80mm) OD 1.122" W x 0.212" H (28.50mm x 5.38mm) Length 0.866" (22.00mm)
Datasheet
7427810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Cable Ferrites
Mfr Wurth Electronics Inc
Series WE-FLAT
Package Tray
Type Flat
Design Solid
Impedance @ Frequency 130Ohm @ 100MHz
Material 4W620
Inner Dimension 0.945" W x 0.031" H (24.00mm x 0.80mm)
Outer Dimension 1.122" W x 0.212" H (28.50mm x 5.38mm)
Ratings -
Mounting Type Free Hanging
Length 0.866" (22.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 63 pcs
Win Source Part Number 1381083-7427810
Ultra Librarian 3D Model Ultra Librarian 7427810 CAD Model

Description

The WE-FLAT series is a flat cable ferrite designed to suppress electromagnetic interference (EMI).

  • Series: WE-FLAT
  • Length: 0.866" (22.00mm)
  • Inner Dimension: 0.945" W x 0.031" H (24.00mm x 0.80mm)
  • Outer Dimension: 1.122" W x 0.212" H (28.50mm x 5.38mm)
  • Mounting Type: Free Hanging
  • Temperature Range: -40°C to 105°C
  • Moisture Sensitivity Level: 1 (Unlimited)
