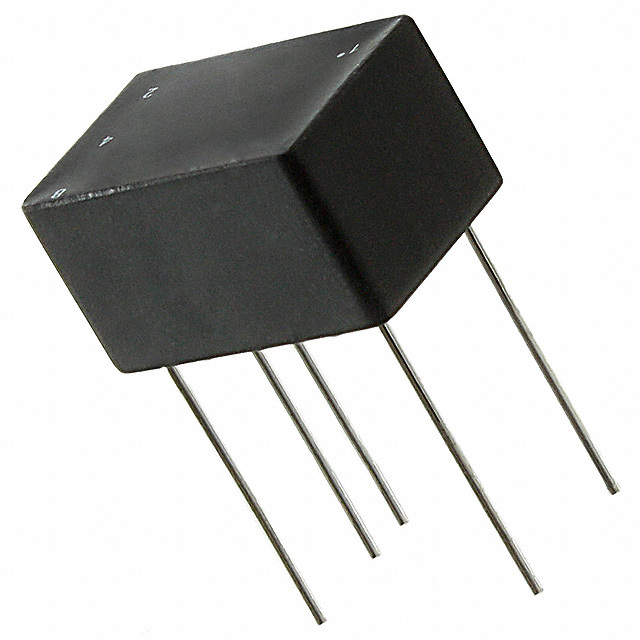

PE-5156XNL Pulse
Same model may have multiple batches, images only for reference.

PE-5156XNL

Part No PE-5156XNL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER 1:1 700VRMS / Pulse Transformer 1:1 700Vrms 1.1Ohm Prim. DCR 1.1Ohm Sec. DCR 4.1pF 6 Terminal PC Pin Thru-Hole
Datasheet
PE-5156XNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube
Inductance 1.2mH
E.T. 77V μS
Mounting Style Through Hole
Dimension 0.650" L x 0.443" W (16.51mm x 11.25mm)
Height - Seated (Maximum) 0.400" (10.16mm)
Weight 0.14 oz (3.99g)
Win Source Part Number 791639-PE-5156XNL
Popularity Medium
Supply and Demand Status Balance
Family Name PE
Introduction Date June 16, 1999
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PE-5156XNL CAD Model

Description

The PE-5156XNL is a through-hole transformer from Pulse Electronics Corporation.

  • Inductance: 1.2mH
  • Applications: Power supply
  • Maximum Weight: 3.99g
  • Package: Tube
  • Height: 10.16mm
  • Width: 11.25mm
