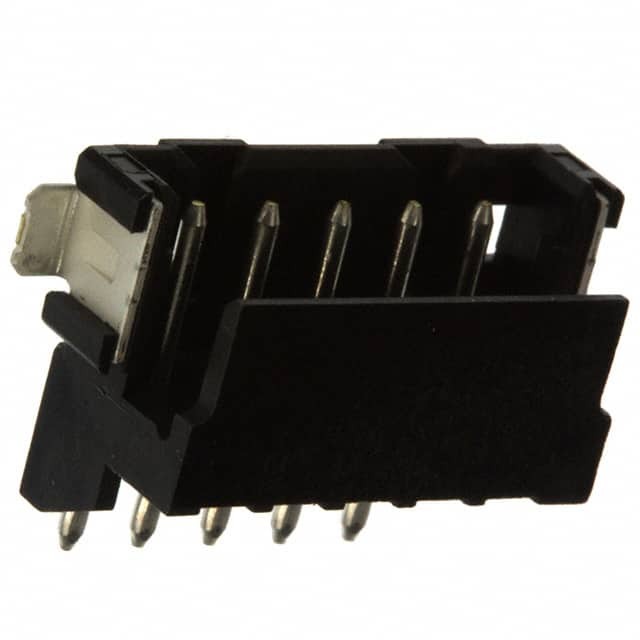

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series CT
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Board Guide, Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292173
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854890-292173-5
Ultra Librarian 3D Model Ultra Librarian 292173-5 CAD Model

Description

The CT Male Pin Header is a reliable and versatile component used in electronic devices.

  • Features: Board Guide, Solder Retention
  • Connector Type: Header
  • Contact Type: Male Pin
  • Mounting Type: Surface Mount, Right-Angle
  • Design: Shrouded 4-Wall
  • Pitch: 0.079” (2.00mm)
  • Contact Finish: Tin
  • Materials: Polyamide (PA6T), Nylon 6T, Glass-Filled Insulation
  • Applications: General-Purpose
  • Standard Package: 500 pcs
  • Manufacturer: TE Connectivity
