Same model may have multiple batches, images only for reference.

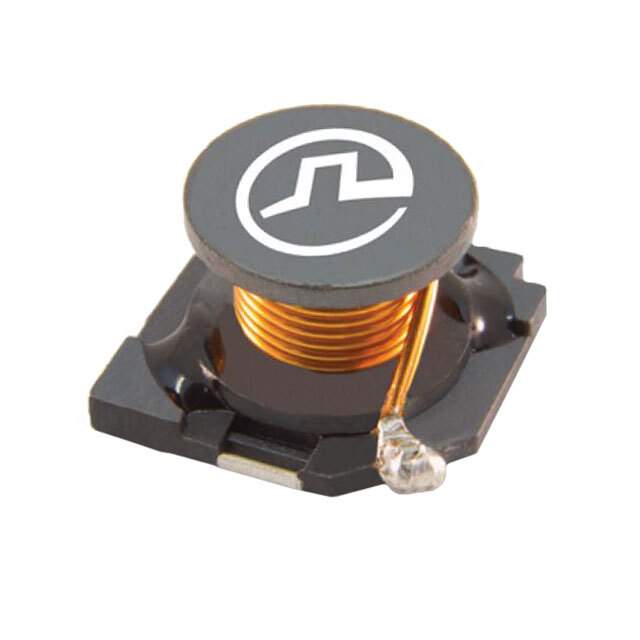

PA4310.104NLT Real Image
Same model may have multiple batches, images only for reference.

PA4310.104NLT

Part No PA4310.104NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 100UH 3.5A 310MOHM SMD / 100 µH Unshielded Wirewound Inductor 3.5 A 310mOhm Max Nonstandard
Datasheet
PA4310.104NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA4310.XXXNL
Package Tape & Reel
Type Wirewound
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Shielding Unshielded
DC Resistance (DCR) 310mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.504" L x 0.504" W (12.80mm x 12.80mm)
Height - Seated (Max) 0.315" (8.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-3616-6,553-3616-2INACTIVE,-PA4310.104NLT,553-3616-1,553-3616-2,PA4310.104NLT-ND
Standard Package 500
Win Source Part Number 1028772-PA4310.104NLT
Ultra Librarian 3D Model Ultra Librarian PA4310.104NLT CAD Model

Description

The PA4310.XXXNL series wirewound fixed inductors are designed to be used in various applications such as power supplies, DC-DC converters, and filtering.

  • Package: Tape and reel
  • Shielding: Unshielded
  • Inductance: 100 µH
  • Maximum Seated Height: 0.315 inches (8.00mm)
  • DC Resistance (DCR): 310mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Mounting: SMD (SMT)
  • Package/Case: Nonstandard
  • Tolerance: ±20%
  • Maximum Current: 3.5 A
  • Supplier: Pulse Electronics Power
  • Alternative Parts: PM3340-101M-RC, CLF7045NIT-101M-D, ASPI-0804T-101M-T, NS10145T101MNV, MSS7341-104MLB, and MSS7341T-104MLB
