ON Semiconductor 74VCXH245MNR2: A High-Speed Bidirectional Transceiver

The ON Semiconductor 74VCXH245MNR2 is a state-of-the-art bidirectional transceiver from the VCXH family, designed to facilitate smooth and efficient data transfer between two buses of different voltage levels. This high-speed transceiver is specifically engineered to address the needs of modern communication systems that require low-voltage operation and bidirectional data flow with high-speed capabilities.

With its advanced design, the 74VCXH245MNR2 is capable of transferring data at exceptional speeds while maintaining signal integrity. It operates as an interface between two buses, with the ability to shift logic levels to accommodate different voltage requirements. This makes it an ideal solution for systems that need to bridge the gap between 3.3V and 5V power domains.

Key Features:

• Power Supply Flexibility: The device supports a wide range of operating voltages from 1.65V to 3.6V on the A side and 2.3V to 5.5V on the B side, providing a versatile interface for mixed-voltage applications.
• High-Speed Operation: Designed for high-speed interconnect, the 74VCXH245MNR2 ensures swift data transfer, making it suitable for high-performance computing and telecommunication systems.
• Low Power Consumption: Its low on-state resistance minimizes power dissipation, contributing to energy-efficient operation—a critical aspect in battery-powered and power-sensitive devices.
• Bus-Hold Circuitry: Integrated bus-hold circuitry on the data inputs eliminates the need for external pull-up or pull-down resistors, simplifying board design and reducing component count.
• Flow-Through Architecture: The device's pinout facilitates easy PCB layout with its flow-through architecture, which aids in simplifying the routing of high-speed signals.

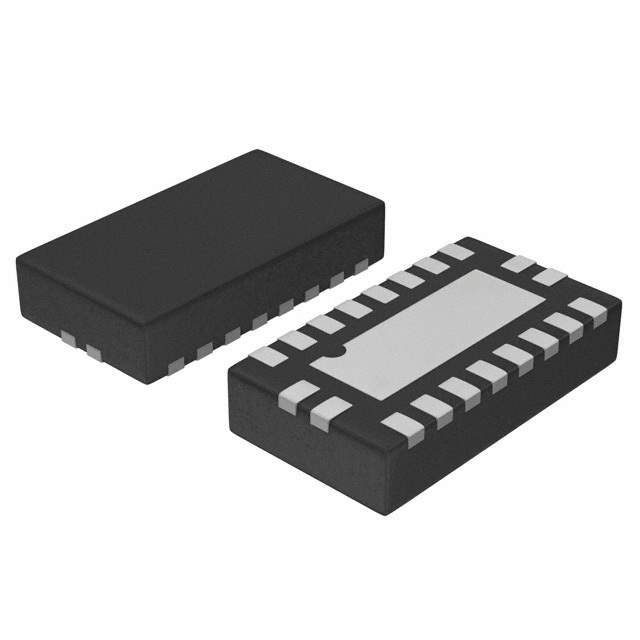

The 74VCXH245MNR2 comes in a compact, lead-free MicroLeadFrame® package, which not only saves board space but also meets environmental standards by reducing hazardous substances in electronic devices. Its robust design ensures reliable operation even under the demanding conditions of industrial and commercial applications.

Whether it's for interfacing between different logic levels, driving lines with high capacitance, or ensuring data integrity in a high-speed data path, the ON Semiconductor 74VCXH245MNR2 is an excellent choice for designers looking for performance, power efficiency, and design flexibility in their digital systems.
