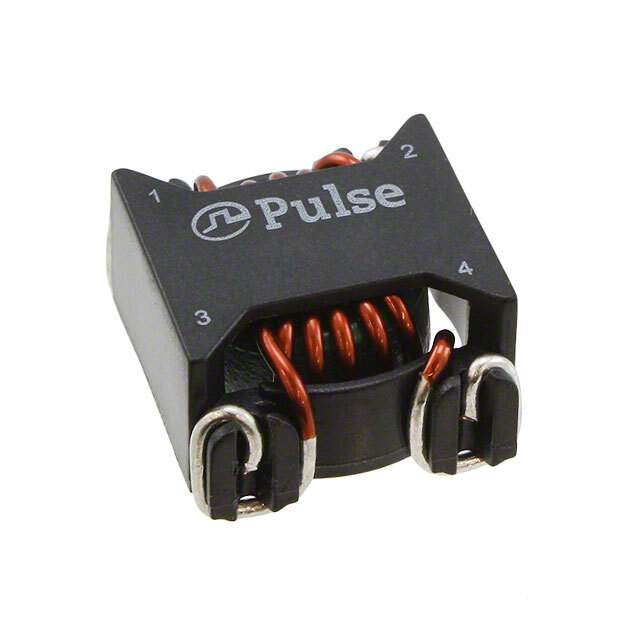

PA2755NL Real Image
Same model may have multiple batches, images only for reference.

PA2755NL

Part No PA2755NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 14A 2LN SMD / 2 Line Common Mode Choke Surface Mount 14A DCR 1.95mOhm
Datasheet
PA2755NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Pulse Electronics Power
Package Tube
Number of Lines 2
Current Rating (Max) 14A
DC Resistance (DCR) (Max) 1.95mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Dimension 0.750" L x 0.815" W (19.05mm x 20.70mm)
Height (Max) 0.440" (11.18mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 553-2193,PA2755NL-ND
Standard Package 25
Win Source Part Number 1026701-PA2755NL
Ultra Librarian 3D Model Ultra Librarian PA2755NL CAD Model

Description

The PA2755NL is a common mode choke with a tube package and a standard package of 25.

  • Maximum DC Resistance (DCR): 1.95mOhm
  • Current Rating (Max): 14A
  • Height: 0.440 inches (11.18mm)
  • Dimension: 0.750 inches L x 0.815 inches W (19.05mm x 20.70mm)
  • Mounting: SMD (SMT) mountable
  • Operating Temperature: -40°C to 130°C
  • Application: Filters>Common Mode Chokes
