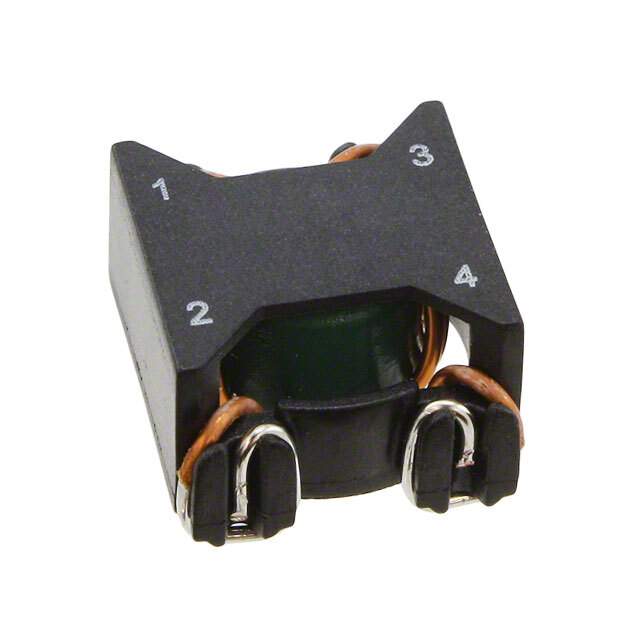

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Pulse Electronics
Packaging Tube
Number of Lines 2
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 9.4mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Surface Mount
Size / Dimension 0.590" L x 0.715" W (14.99mm x 18.16mm)
Height (Max) 0.390" (9.91mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 553-2188,PA2750NL-ND
Standard Package 30
Win Source Part Number 1328214-PA2750NL
Ultra Librarian 3D Model Ultra Librarian PA2750NL CAD Model

Description

The Pulse Electronics 1328214-PA2750NL is a common mode choke designed for use with electronic devices.

  • Packaging: Tube
  • Maximum Current Rating: 6A
  • Supply and Demand Status: Limited
  • Manufacturer: Pulse Electronics
  • RoHS Status: RoHS compliant
