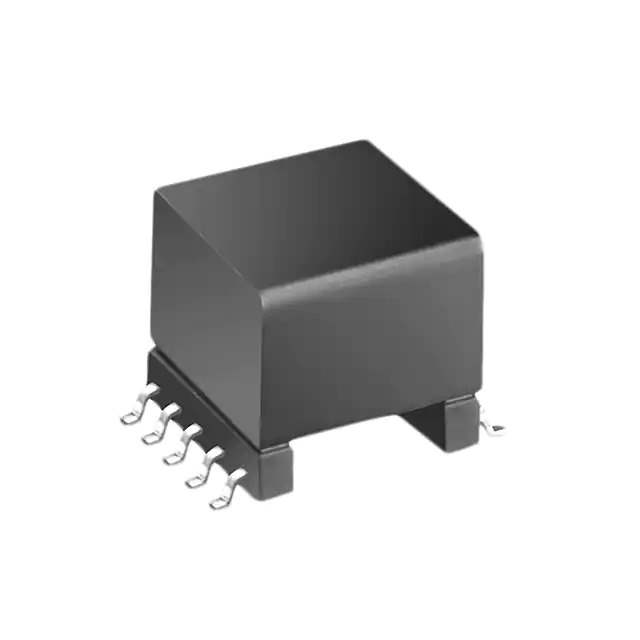

PA2369NLT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Inductance 37µH
Mounting Type Surface Mount
Size / Dimension 0.551" L x 0.516" W (14.00mm x 13.11mm)
Height - Seated (Max) 0.485" (12.32mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 150 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 748145-PA2369NLT
Ultra Librarian 3D Model Ultra Librarian PA2369NLT CAD Model

Description

The 748145-PA2369NLT is a pulse transformer used in transformers.

  • Package: Tape and Reel
  • Size/Dimension: 0.551" L x 0.516" W (14.00mm x 13.11mm)
  • Mounting: Surface Mount
  • Standard Package Quantity: 150 pieces
  • Temperature Range: -40°C to 130°C
  • ECCN Status: EAR99
  • REACH Status: Unaffected
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
