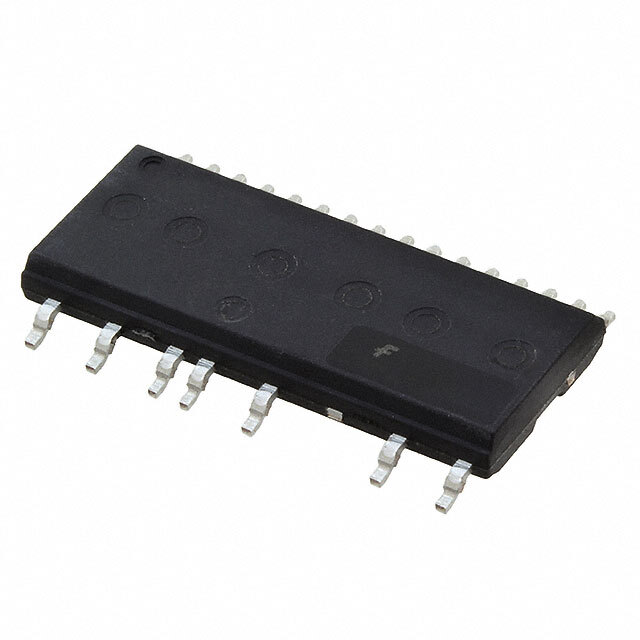

Introducing the FSB50550ASE Smart Power Module from ON Semiconductor

The FSB50550ASE, a cutting-edge Smart Power Module (SPM) from ON Semiconductor, is an innovative solution designed to enhance efficiency and reliability in motor drive applications. This compact module encapsulates a complete drive circuit with a 500V, 1A IGBT inverter bridge configuration, making it an ideal choice for small horsepower motor drives.

Key Features:

• Advanced IGBT Technology: Utilizing ON Semiconductor's proprietary IGBT technology, the FSB50550ASE offers low saturation voltage and fast switching characteristics, which translates to reduced power losses and improved thermal performance.
• Integrated Under-Voltage Lock-Out (UVLO): With an integrated UVLO feature, this module ensures safe operation by preventing the power device from turning on at insufficient voltages.
• Built-in Bootstrap Diodes: The inclusion of bootstrap diodes simplifies the PCB layout and reduces external component count, leading to a more compact design and reduced system cost.
• Over-Current Protection: The FSB50550ASE is equipped with over-current protection to safeguard the module and the system it powers from unexpected current spikes.
• Optimized for Low Electromagnetic Interference (EMI): Designed with EMI performance in mind, this module helps in meeting stringent EMI standards, making it suitable for noise-sensitive applications.
• Isolation Rating of 1500Vrms/min: The module offers excellent electrical isolation between the high-power and low-power circuitry for enhanced safety and reliability.

Applications:

The FSB50550ASE is versatile and can be used in a variety of applications, including:

• Home appliances (e.g., washing machines, refrigerators, air conditioners)
• Fan and pump controls
• General-purpose inverters
• Other small horsepower motor drives

ON Semiconductor's FSB50550ASE is a testament to the company's commitment to providing high-quality, reliable power management solutions. With its robust design and integrated features, it simplifies the development of energy-efficient motor control systems, enabling designers to create more compact and cost-effective products for the consumer and industrial markets.

For more detailed specifications and application support, visit ON Semiconductor's official website or contact their customer service for technical assistance.
