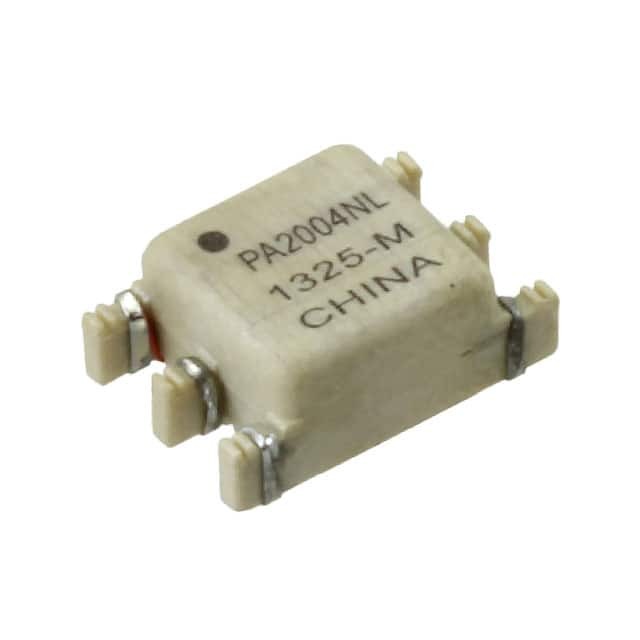

PA2004NL
Same model may have multiple batches, images only for reference.

PA2004NL

Part No PA2004NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1:1 437UH
Datasheet
PA2004NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Inductance 437µH
ET (Volt-Time) 20VµS
Mounting Type Surface Mount
Size / Dimension 0.340" L x 0.265" W (8.64mm x 6.73mm)
Height - Seated (Max) 0.140" (3.56mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 75 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 848172-PA2004NL
Ultra Librarian 3D Model Ultra Librarian PA2004NL CAD Model

Description

The 848172-PA2004NL is a pulse transformer designed for use in electronic devices.

  • Category: Transformers - Pulse Transformers
  • Package Size: 0.340" L x 0.265" W (8.64mm x 6.73mm)
  • Mounting Type: Surface Mountable
  • Seated Height: 0.140" (3.56mm) Max
  • Inductance: 437μH
  • Operating Temperature: -40°C to 130°C
  • Product Status: Active
  • Standard Package: 75 pieces
  • Manufacturer: Pulse
