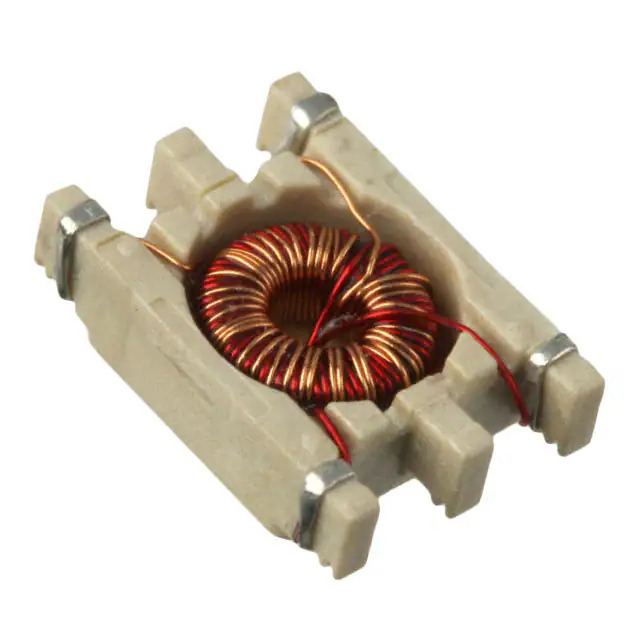

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse Electronics
Series -
Package Tape & Reel
Product Status Active
Transformer Type -
Inductance 403µH
ET (Volt-Time) 12VµS
Mounting Type Surface Mount
Size / Dimension 0.340" L x 0.265" W (8.64mm x 6.73mm)
Height - Seated (Max) 0.098" (2.49mm)
Temperature Range - Operating -40°C ~ 130°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1370278-PA2001NLT
Ultra Librarian 3D Model Ultra Librarian PA2001NLT CAD Model

Description

The 1370278-PA2001NLT is a pulse transformer designed for use in electronic devices and manufactured by Pulse Electronics.

  • Category: Transformers - Pulse Transformers
  • Package: Tape & Reel
  • Status: Active
  • Temperature Range: -40°C to 130°C
  • Mounting Type: Surface Mount
  • Inductance: 403μH
  • Volt-Time Rating: 12Vμs
