Same model may have multiple batches, images only for reference.

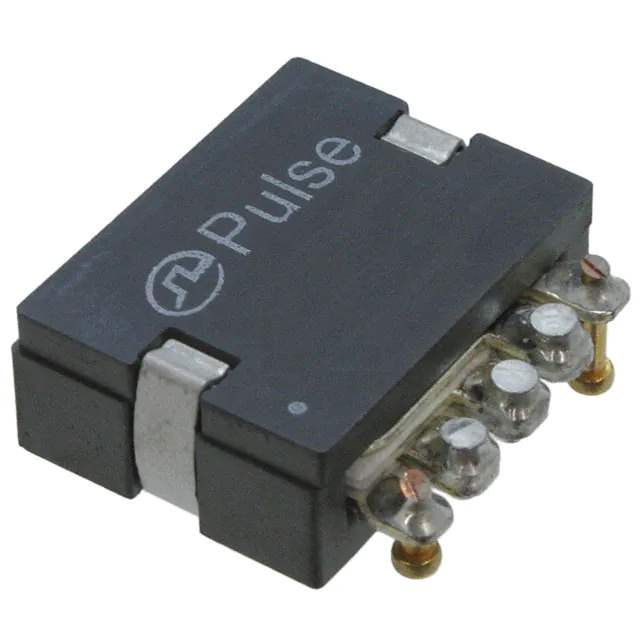

PA1494.442NL Real Image
Same model may have multiple batches, images only for reference.

PA1494.442NL

Part No PA1494.442NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 4.4UH 14A 1.8 MOHM SMD
Datasheet
PA1494.442NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PA1494NL
Package Tray
Product Status Active
Type Planar
Inductance 4.4 µH
Tolerance ±15%
Current Rating (Amps) 14 A
Current - Saturation (Isat) 16A
Shielding Shielded
DC Resistance (DCR) 1.8mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.780" L x 0.770" W (19.81mm x 19.56mm)
Height - Seated (Max) 0.290" (7.37mm)
Standard Package 90 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 652345-PA1494.442NL
Ultra Librarian 3D Model Ultra Librarian PA1494.442NL CAD Model

Description

The 652345-PA1494.442NL is a fixed inductor from the Inductors, Coils, Chokes - Fixed Inductors category.

  • Series: PA1494NL
  • Type: planar
  • Package: tray
  • Shielded: yes
  • Size / Dimension: 0.780" L x 0.770" W (19.81mm x 19.56mm)
  • Inductance: 4.4 µH
  • Height - Seated (Max): 0.290" (7.37mm)
  • Standard Package: 90 pieces
  • Tolerance: ±15%
  • DC Resistance (DCR): 1.8mOhm max
  • Operating Temperature: -40°C to 130°C
  • Product Status: active
  • Manufacturer: Pulse
  • Current Saturation (Isat): 16A
