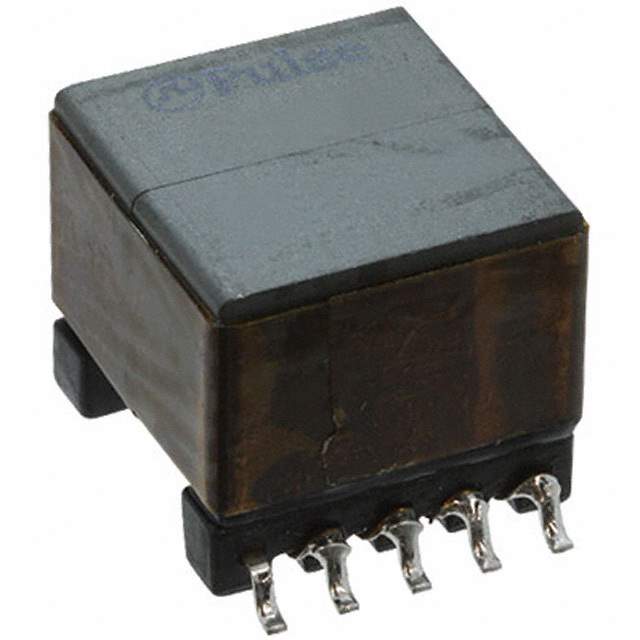

PA1260NLT Real Image
Same model may have multiple batches, images only for reference.

PA1260NLT

Part No PA1260NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 5V 13.5W 77.4UH POE EP13
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 77.4μH
Mounting Style SMD
Dimension 0.551" L x 0.516" W (14.00mm x 13.11mm)
Height - Seated (Maximum) 0.485" (12.32mm)
Temperature Range - Operating -40°C ~ 130°C
Manufacturer Pack Quantity 150
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811858-PA1260NLT
Ultra Librarian 3D Model Ultra Librarian PA1260NLT CAD Model

Description

The Pulse Electronics Power 811858-PA1260NLT is an encapsulated isolation and data interface transformer type electronic component.

  • Weight: -
  • Inductance: 77.4μH
  • Operating Temperature Range: -40°C to 130°C
  • Dimension: 0.551" L x 0.516" W (14.00mm x 13.11mm)
  • Mounting Style: SMD
  • Manufacturer Pack Quantity: 150
