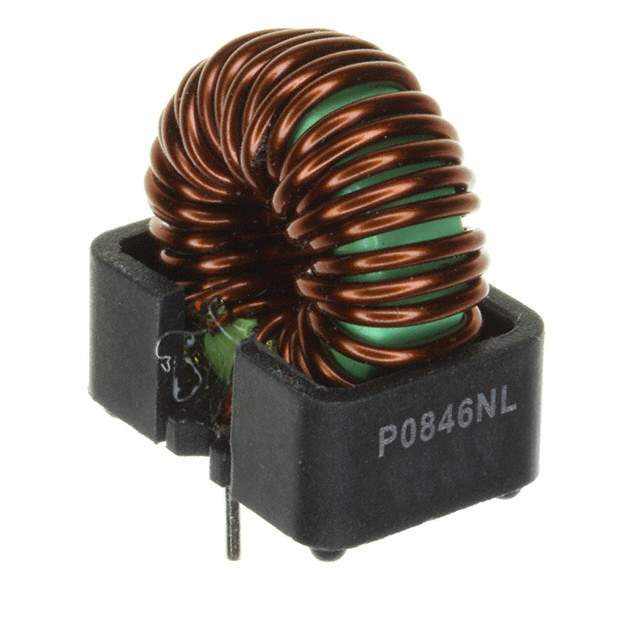

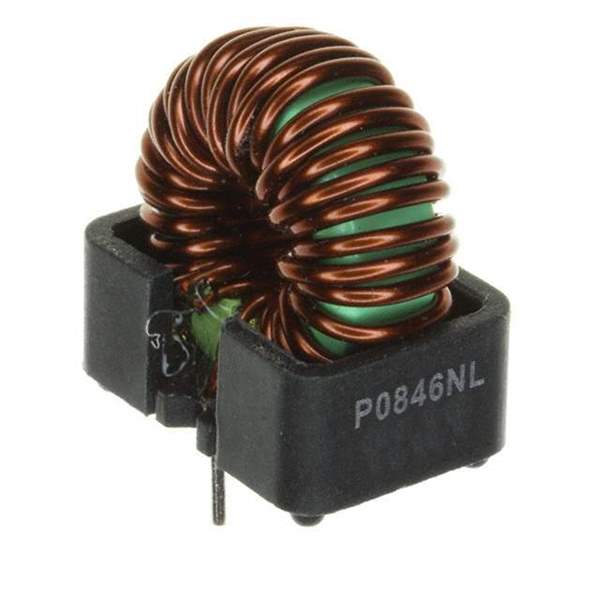

P0846NL Real Image
Same model may have multiple batches, images only for reference.

P0846NL

Part No P0846NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 14.8UH 5A 23 MOHM TH / 14.8 µH Shielded Toroidal Inductor 5 A 23mOhm Radial, Vertical (Open)
Datasheet
P0846NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series KlipMount™
Package Tube
Type Toroidal
Inductance 14.8 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Shielding Shielded
DC Resistance (DCR) 23mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Dimension 0.670" L x 0.460" W (17.02mm x 11.69mm)
Height - Seated (Max) 0.750" (19.05mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-1119
Standard Package 80
Win Source Part Number 967481-P0846NL
Ultra Librarian 3D Model Ultra Librarian P0846NL CAD Model

Description

The KlipMount™ P0846NL is a fixed inductor that belongs to the inductors, coils, chokes category.

  • Inductor Type: Toroidal
  • Shielding: Shielded
  • Inductance: 14.8 µH
  • Package: Tube
  • Package/Case: Radial, Vertical (Open)
  • Standard Package: 80 pieces
  • Tolerance: ±20%
  • Manufacturer: Pulse Electronics Power
  • DC Resistance: 23mOhm
  • Operating Temperature: -40°C to 130°C
