ON Semiconductor FPF2223 Full-Function Load Switch

The ON Semiconductor FPF2223 is a state-of-the-art full-function load switch designed for high-performance power management applications. This advanced component offers a compact and efficient solution for controlling power distribution in a wide range of electronic devices.

Key Features

• Input Voltage Range: The FPF2223 operates over a wide input voltage range from 1.2V to 5.5V, making it versatile for various applications.
• Current Rating: It supports a continuous current of up to 2A, catering to the needs of high-power devices.
• Low R_DS(on): The low on-resistance of the switch minimizes power loss and improves efficiency, which is essential for battery-powered applications.
• Adjustable Rise Time: The adjustable rise time feature allows for controlled inrush current, reducing the likelihood of system voltage droop during turn-on.
• Over-Current Protection: With built-in over-current protection, the FPF2223 ensures reliable operation by preventing damage to the device due to excessive current.
• Thermal Shutdown: The thermal shutdown feature provides additional protection by turning off the switch in the event of overheating.

Applications

The FPF2223 is ideal for a variety of applications where efficient power management is crucial. These include:

• Smartphones and portable electronics
• Wireless communication systems
• Power supply distribution networks
• Battery-powered devices

Design and Integration

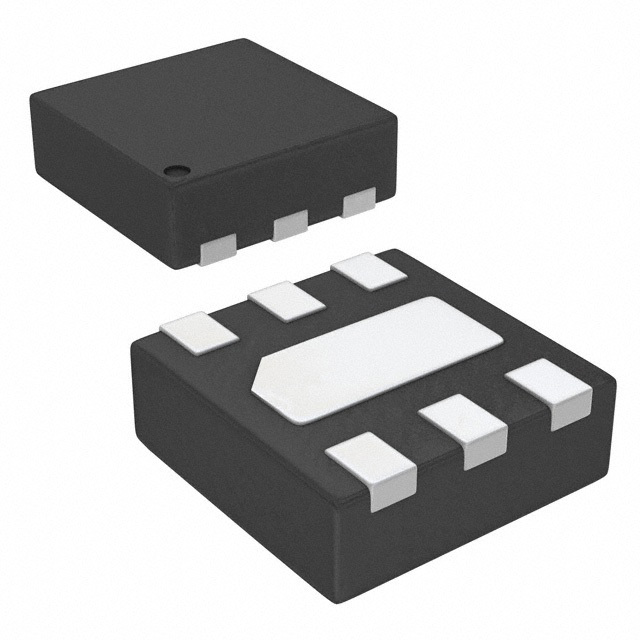

The compact package design of the FPF2223 allows for easy integration into space-constrained applications. The device is available in a small 6-pin MLP package, which is suitable for PCBs where space is at a premium. Its straightforward pin configuration simplifies the design process, enabling quick and easy incorporation into existing and new designs.

Conclusion

With its comprehensive protection features, high efficiency, and versatile application range, the ON Semiconductor FPF2223 full-function load switch is an excellent choice for designers looking to enhance power management in their electronic devices. Its robust design ensures long-term reliability, making it a trusted component for a multitude of power control solutions.
