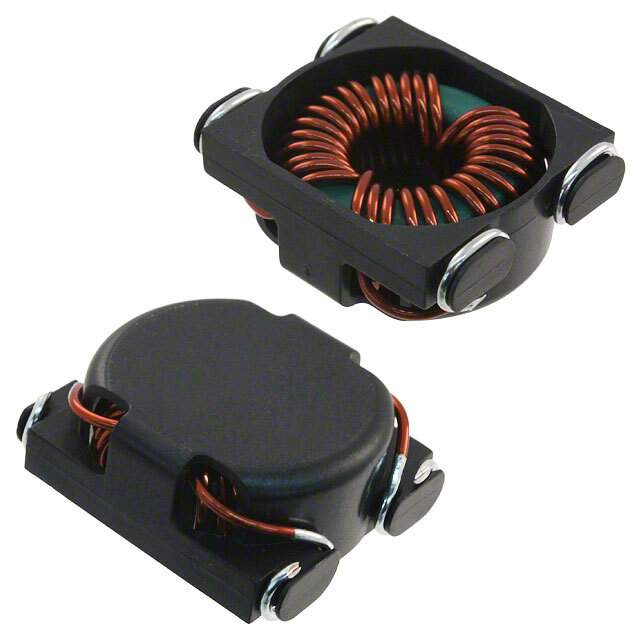

P0469NL Real Image
Same model may have multiple batches, images only for reference.

P0469NL

Part No P0469NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 11.6A 2LN SMD / Designed for DC/DC converters, Wide variety of inductor sizes and current ratings available
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Tube
Filter Type Power Line
Number of Lines 2
Current Rating (Maximum) 11.6A
DC Resistance (DCR) (Maximum) 10mOhm
Temperature Range - Operating -40°C ~ 120°C
Mounting Style SMD
Dimension 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Maximum) 0.500" (12.70mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812152-P0469NL
Ultra Librarian 3D Model Ultra Librarian P0469NL CAD Model

Description

The Pulse Electronics Power 812152-P0469NL is a power line filter manufactured by Pulse Electronics Power.

  • Type: Surface Mount
  • Maximum Current Rating: 11.6A
  • Maximum DC Resistance: 10mOhm
  • Temperature Range: -40°C to 120°C
  • Package: Horizontal, 4 PC pad
  • Popularity: Low
  • Supply and Demand Status: Limited
