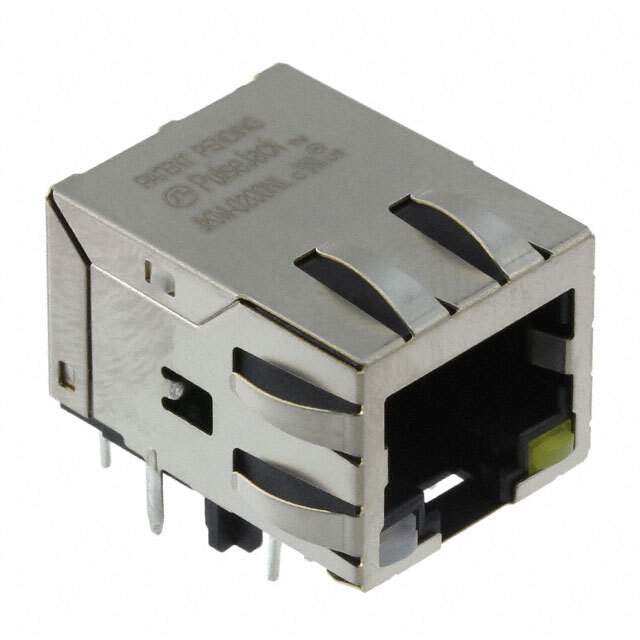

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Pulse Electronics Network
Series PULSEJACK™ JKM
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 2
Shielding Shielded, EMI Finger
Tab Direction Down
Temperature Range - Operating 0°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names -JKM-0200NL,553-3217
Standard Package 45
Win Source Part Number 1008660-JKM-0200NL
Ultra Librarian 3D Model Ultra Librarian JKM-0200NL CAD Model

Description

The Pulse Electronics Network PULSEJACK™ JKM series is a shielded, EMI fingered RJ45 connector with a 90° angle (right) orientation.

  • Ports: one port
  • Applications: designed for 10/100/1000 Base-T and AutoMDIX applications
  • Height Above Board: 0.545" (13.84mm)
  • Mounting: through hole
  • LED Color: green-yellow
  • Tab Direction: down
  • Package: tray package
  • Standard Package: 45
  • Operating Temperature: 0°C to 70°C
