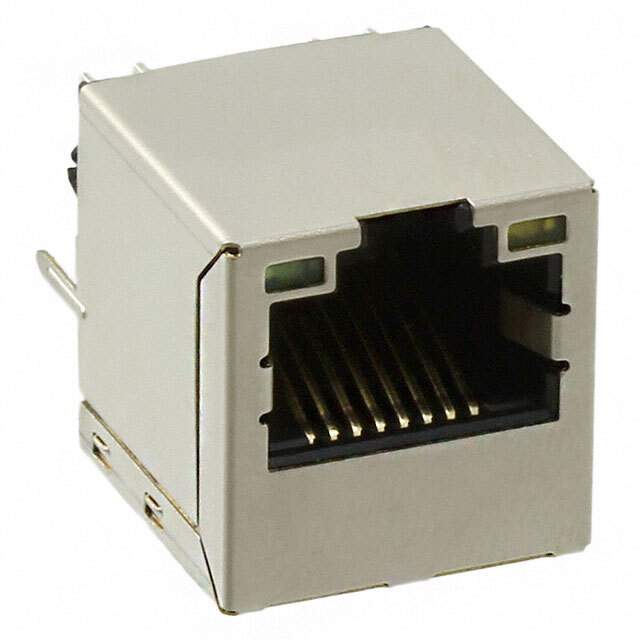

JD2-0001NL Real Image
Same model may have multiple batches, images only for reference.

JD2-0001NL

Part No JD2-0001NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Product Status Obsolete
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation Vertical
Termination Solder
Height Above Board 0.665" (16.90mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded
Features Board Lock
Tab Direction User Selectable
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-2363
Standard Package 50
Win Source Part Number 1333914-JD2-0001NL
Ultra Librarian 3D Model Ultra Librarian JD2-0001NL CAD Model

Description

The Pulse Electronics JD2-0001NL is a shielded modular connector jack with magnetics for 10/100 Base-TX and AutoMDIX applications.

  • Features: Board lock
  • Orientation: Vertical
  • Connector: Single RJ45
  • Cores per Jack: Four
  • LED Color: Green-yellow
  • Shielding: Shielded for enhanced EMI protection
  • Mounting: Through-hole device
  • Packaging: Tray packaging
