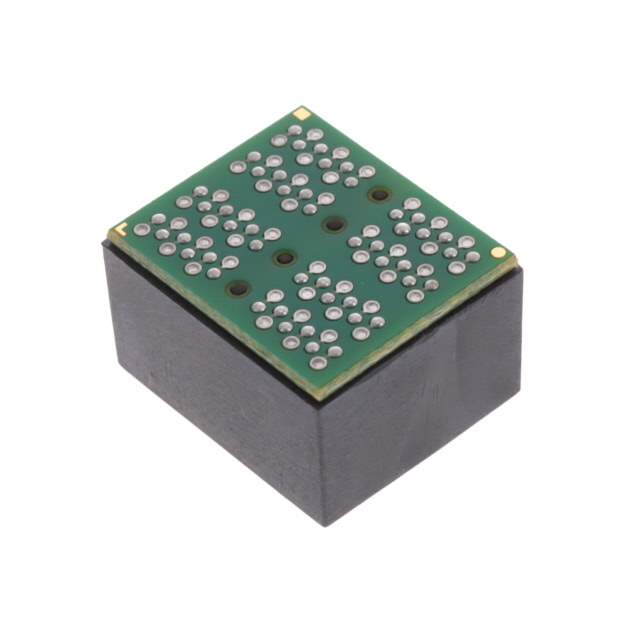

HX5200NL Real Image
Same model may have multiple batches, images only for reference.

HX5200NL

Part No HX5200NL
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR MODL 2PORT POE GIGABIT / Isolation and Data Interface (Encapsulated) Pulse Transformer Surface Mount
Datasheet
HX5200NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse Electronics
Package Tray
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Type Surface Mount
Size / Dimension 0.580" L x 0.680" W (14.73mm x 17.27mm)
Height - Seated (Max) 0.430" (10.92mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.18 oz (5.13 g)
Standard Package 84
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1340887-HX5200NL
Ultra Librarian 3D Model Ultra Librarian HX5200NL CAD Model

Description

The Pulse Electronics 1340887-HX5200NL transformer is an isolation and data interface transformer designed for use in a variety of applications, including telecommunications and networking equipment.

  • Product Name: 1340887-HX5200NL
  • Manufacturer: Pulse Electronics
  • Type: Isolation and Data Interface Transformer
  • Mounting Style: Through-Hole
  • Encapsulated: Yes
  • Size: 0.580" L x 0.680" W
  • Seated Height: 0.430"
  • RoHS: Compliant
  • Operating Temperature: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8504.31.2000
