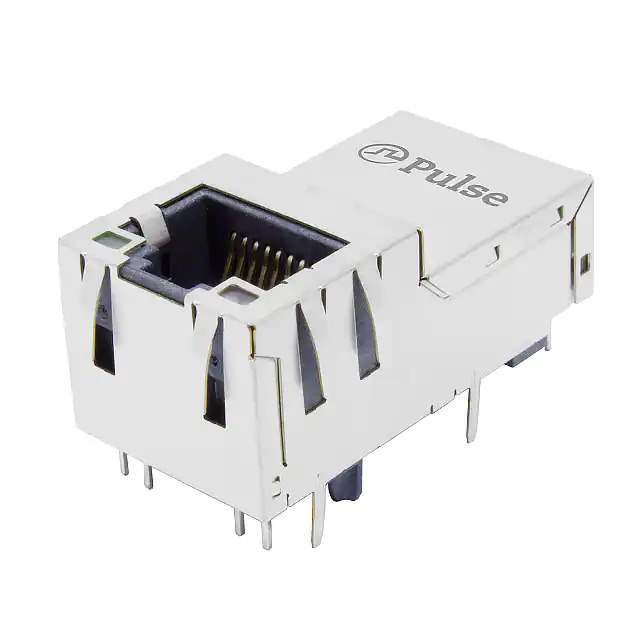

Same model may have multiple batches, images only for reference.

J1V-U2500NL

Name: J1V-U2500NL
Brand: Pulse
SKU: 1351578
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	J1V-U2500NL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN JACK 1PORT 2.5G BASE-T PCB / 1 Port RJ45Through Hole 2.5G Base-T, AutoMDIX, Power over Ethernet (PoE)
Datasheet	J1V-U2500NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	Pulse Electronics
Series	PULSEJACK™ J1V
Package	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	2.5G Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type	Through Hole
Orientation	Vertical
Termination	Solder
Height Above Board	0.581" (14.76mm)
LED Color	Yellow, Green - Green
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Lock
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Copper Alloy
Housing Material	Thermoplastic
Standard Package	45
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351578-J1V-U2500NL
Ultra Librarian 3D Model	Ultra Librarian J1V-U2500NL CAD Model

Alternative Products

Description

The PULSEJACK J1V series modular connector jacks from Pulse Electronics are designed with board lock feature for secure mounting.

Series: PULSEJACK J1V
Features: Board Lock
Connector Type: RJ45
Row: Single
Mounting Type: Through Hole
Shielding: EMI Finger, Copper Alloy Material
Orientation: Vertical
Height Above Board: 0.581" (14.76mm)
Applications: 2.5G Base-T, AutoMDIX, and Power over Ethernet (PoE)
Packaging: Tray
Standard Package: 45
