Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.550" (13.97mm)
LED Color Green - Yellow
Number of Cores per Jack 5
Features Board Guide
Contact Finish Gold
Temperature Range - Operating 0°C to 70°C
Contact Finish Thickness 15μin (0.38μm)
Shield Material Brass
Housing Material Thermoplastic
Win Source Part Number 1049998-J1026F01PNL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian J1026F01PNL CAD Model

Description

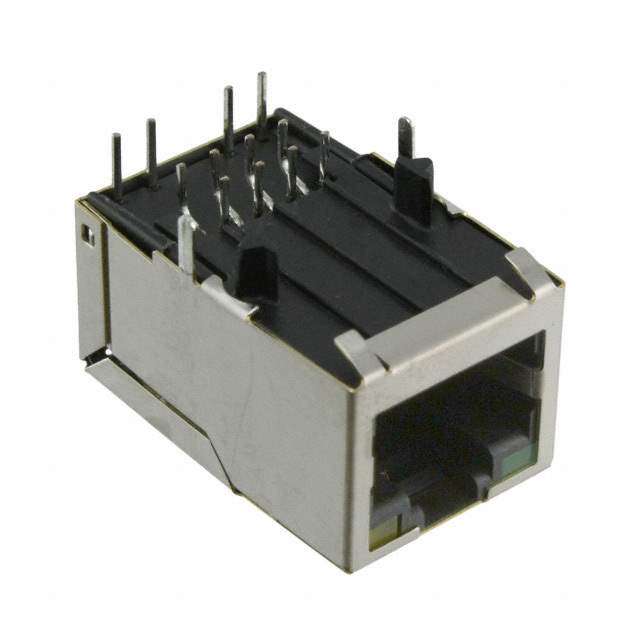

The Pulse Electronics Corporation J1026F01PNL is a through-hole RJ45 connector with 90° angle orientation.

  • Mounting: Through-Hole
  • Orientation: 90° Angle
  • Rows: Single
  • Ports: One
  • Application: 10/100 Base-TX
  • Housing Material: Thermoplastic
  • Height Above Board: 0.550" (13.97mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 15μin (0.38μm)
  • Shielding Material: Brass
  • LED Color: Green-Yellow
  • Board Guide: Yes
  • Operating Temperature: 0°C to 70°C
  • Application: Networking and communication
