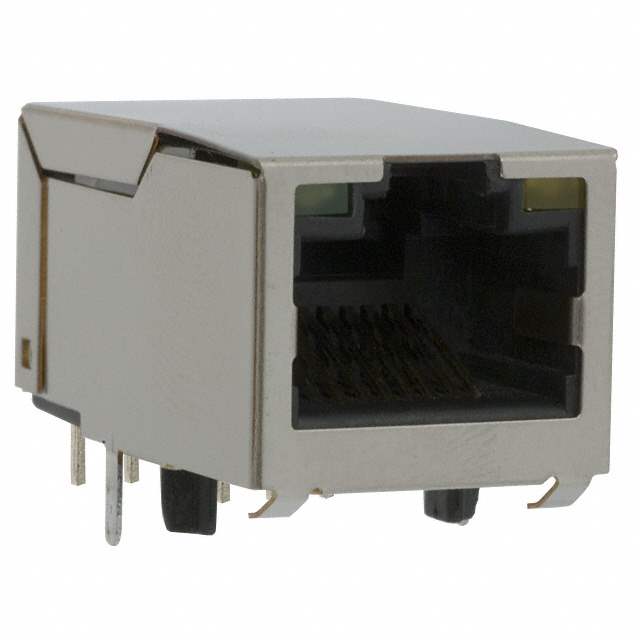

J1011F01PNL

Name: J1011F01PNL
Brand: Pulse
SKU: 165738
Availability: InStock
Rating: 4.91 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	J1011F01PNL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN MAGJACK 1PORT 100 BASE-TX
Datasheet	J1011F01PNL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Pulse Electronics Corporation
Packaging	Bulk
Status	Active
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-TX, AutoMDIX
Mounting	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.550" (13.97mm)
LED Color	Green - Yellow
Number of Cores per Jack	4
Features	Board Guide
Contact Finish	Gold
Temperature Range - Operating	0°C to 70°C
Contact Finish Thickness	15μin (0.38μm)
Shield Material	Brass
Housing Material	Thermoplastic
Win Source Part Number	088577-J1011F01PNL
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian J1011F01PNL CAD Model

Alternative Products

Description

The Pulse Electronics Corporation connector, part number 088577-J1011F01PNL, is a through-hole RJ45 connector with a board guide feature.

Height Above Board: 0.550 inches
Housing: Thermoplastic material
Contact Finish: Gold
Thickness: 15μin (0.38μm)
Applications: 10/100 Base-TX and AutoMDIX
