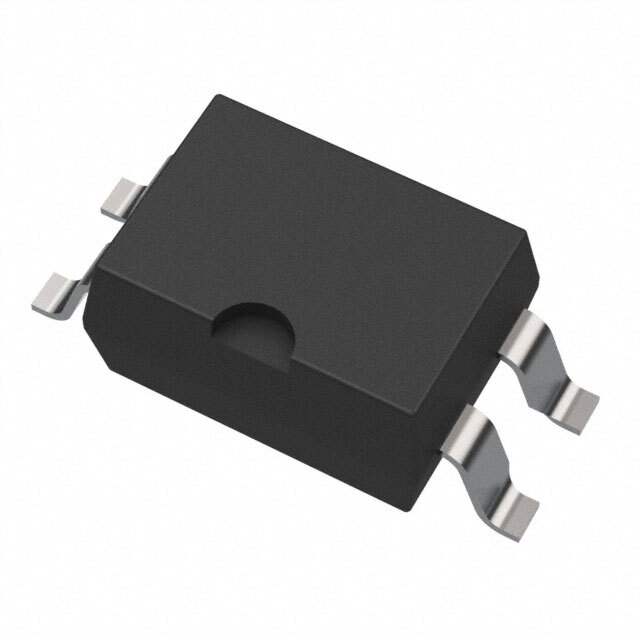

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Bulk
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 600 V
Load Current 90 mA
On-State Resistance (Max) 50 Ohms
Termination Style Gull Wing
Package / Case 4-SMD (0.300", 7.62mm)
Supplier Device Package 4-SOP
Base Product Number CPC1393
Standard Package 100 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 580133-CPC1393GR
Ultra Librarian 3D Model Ultra Librarian CPC1393GR CAD Model

Description

The CPC1393GR is a solid state relay from the CPC series by IXYS.

  • Series: CPC
  • Termination Style: Gull wing
  • Package: Bulk
  • Voltage Input: 1.2VDC
  • Output Type: AC and DC
  • Configuration: Single Pole, Single Throw Normally Open (SPST-NO)
  • On-State Resistance: 50 Ohms
  • Load Current Capacity: 90 mA
  • Voltage: 0V to 600V
  • Mounting: Surface Mountable
  • Package: 4-SMD
  • Status: Active
  • Standard Package: 100 pcs
  • Applications: Solid State Relays
