Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 4
Number of Rows 1
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat5
Features Board Guide
LED Color Yellow - Green
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Housing Material Thermoplastic
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 763539-5406552-1
Popularity Medium
Supply and Demand Status Limited
Family Name 5406552
Introduction Date June 03, 2009
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5406552-1 CAD Model

Description

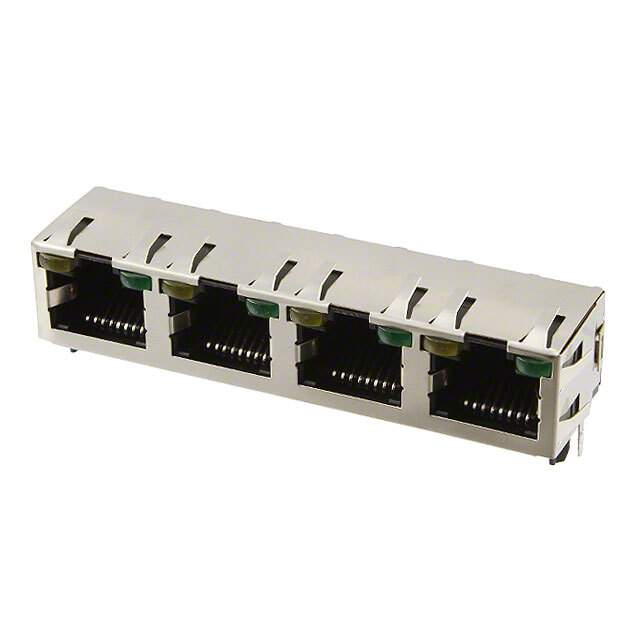

The TE Connectivity AMP Connectors 763539-5406552-1 is a jack connector.

  • Temperature Range: -40°C to 85°C
  • Orientation: 90° Angle (Right)
  • Shielding: EMI Finger
  • Contact Finish: Gold
  • Contact Finish Thickness: 50μin (1.27μm)
  • Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Packaging: Tray
  • Halogen-Free: Yes
  • Estimated EOL Date: 2026
  • Supply and Demand Status: Limited
