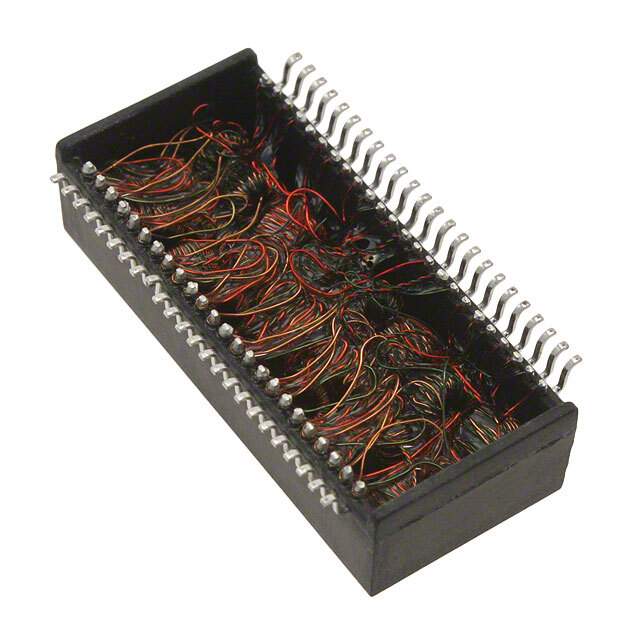

HX5014NLT Real Image
Same model may have multiple batches, images only for reference.

HX5014NLT

Part No HX5014NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER MODULE GIGABIT 2PORT / Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Dimension 1.095" L x 0.480" W (27.81mm x 12.19mm)
Height - Seated (Max) 0.295" (7.49mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.14 oz (3.99 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names HX5014NLT-ND,1840-HX5014NLTDKR,1840-HX5014NLTCT,1840-HX5014NLTTR
Standard Package 250
Win Source Part Number 1007920-HX5014NLT
Ultra Librarian 3D Model Ultra Librarian HX5014NLT CAD Model

Description

The Pulse Electronics Network HX5014NLT is a pulse transformer.

  • Function: Isolation and data interface transformer
  • Package: Tape and reel
  • Maximum Seated Height: 0.295 inches
  • Weight: 0.14 oz
  • Mounting: SMD (SMT)
  • Operating Temperature Range: -40°C to 85°C
  • Standard Package: 250
  • ECCN: Compliant
  • RoHS: Compliant
  • Length: 1.095 inches
  • Width: 0.480 inches
