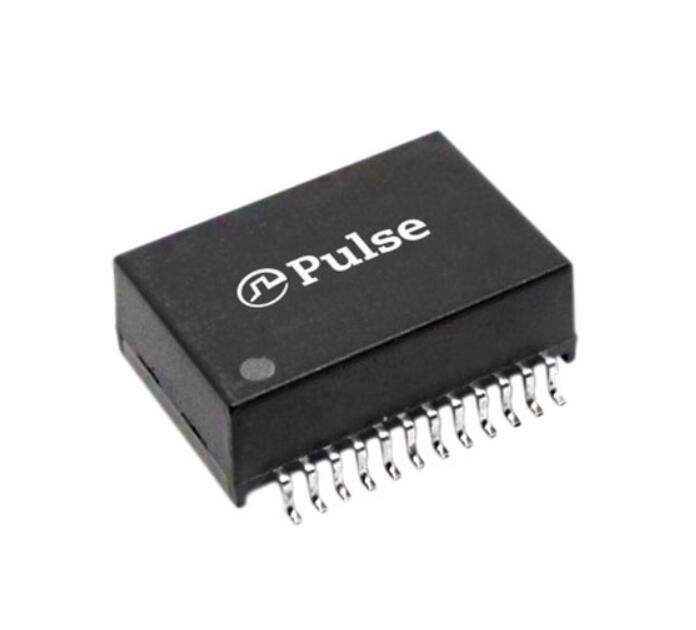

HX4019NL Pulse Electronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1201936-HX4019NL
Win Source Part Number Cross
Manufacturer Pulse Electronics
Category Transformers Pulse Transformers
Package Tube
Product Status Active
Transformer Type General Purpose
Inductance 150µH
Mounting Type Surface Mount
Size / Dimension 0.715" L x 0.480" W (18.16mm x 12.20mm)
Height - Seated (Max) 0.260" (6.60mm)
Ultra Librarian 3D Model Ultra Librarian HX4019NL CAD Model

Description

The Pulse Electronics general purpose transformer is a reliable component used in various electronic applications.

  • Size / Dimension: 0.715" L x 0.480" W (18.16mm x 12.20mm)
  • Inductance: 150µH
  • Height - Seated (Max): 0.260" (6.60mm)
  • Mounting Type: Surface Mount
  • Packaging: Tube
  • Status: Active
