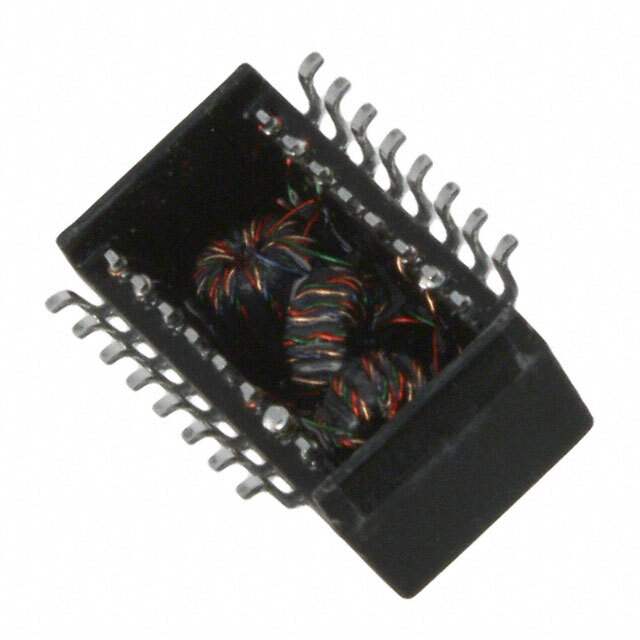

HX2019NLT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.04 oz (1.14g)
Win Source Part Number 001723-HX2019NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HX2019
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian HX2019NLT CAD Model

Description

The Pulse Electronics Corporation HX2019NLT is an isolation and data interface transformer that belongs to the Transformers family. However, the supply and demand status is balanced. This transformer is designed to provide isolation and data transfer for various applications.
