Same model may have multiple batches, images only for reference.

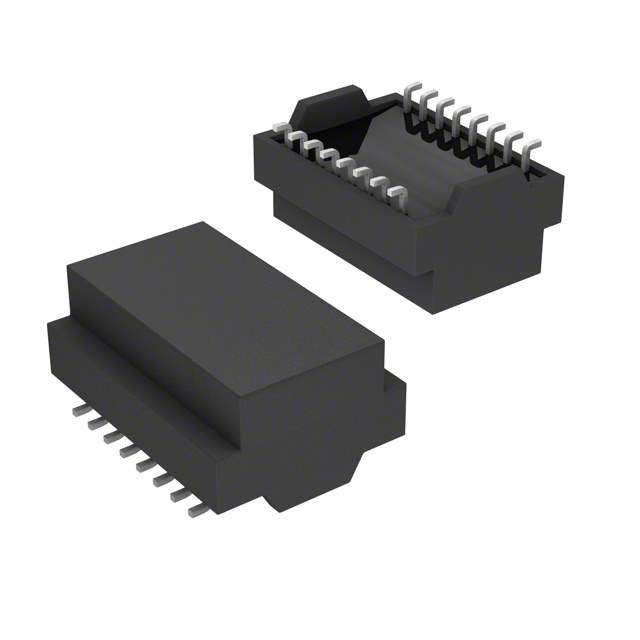

HM1188FNLT Real Image
Same model may have multiple batches, images only for reference.

HM1188FNLT

Part No HM1188FNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
HM1188FNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Mounting SMD (SMT)
Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max) 0.236" (5.99mm)
Temperature Range - Operating -40°C ~ 105°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-3790-6,HM1188FNLT-ND,553-3790-1,553-3790-2
Standard Package 600
Win Source Part Number 957927-HM1188FNLT
Ultra Librarian 3D Model Ultra Librarian HM1188FNLT CAD Model

Description

The HM1188FNLT transformer is designed for use in LAN 10/100 Base-T applications from Pulse.

  • Applications: LAN 10/100 Base-T
  • Operating Temperature: -40°C to 105°C
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Standard Package: 600
  • Component Category: Pulse Transformer
  • ECCN: EAR99
  • HTSUS: 8504.31.2000
