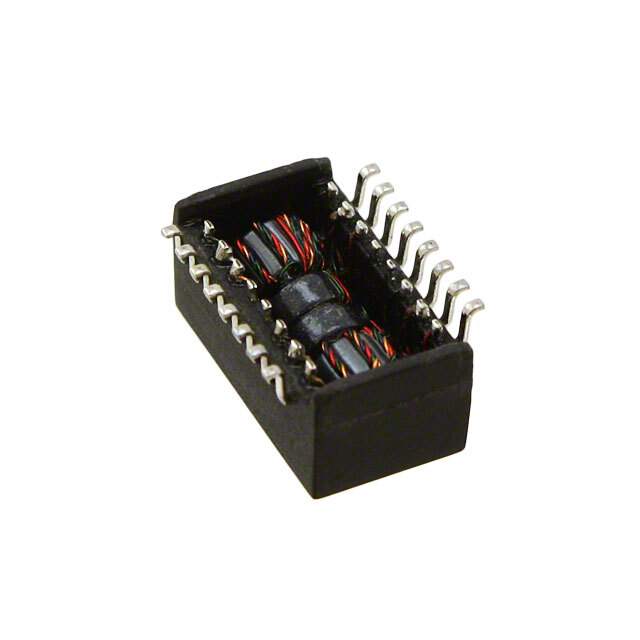

HX1198NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.03 oz (0.85g)
Win Source Part Number 122704-HX1198NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HX1198NL CAD Model

Description

The Pulse Electronics Corporation HX1198NL is an electronic component that falls under the category of transformers. It is an isolation and data interface (encapsulated) transformer that is packaged in a tube/rail. It has a height - seated (max) of 0.245" (6.22mm) and is mounted using SMD (SMT) technology. This component has a weight of 0.03 oz (0.85g) and is manufactured by Pulse Electronics Corporation. It has a Win Source Part Number of 122704-HX1198NL and has a medium popularity.
