Same model may have multiple batches, images only for reference.

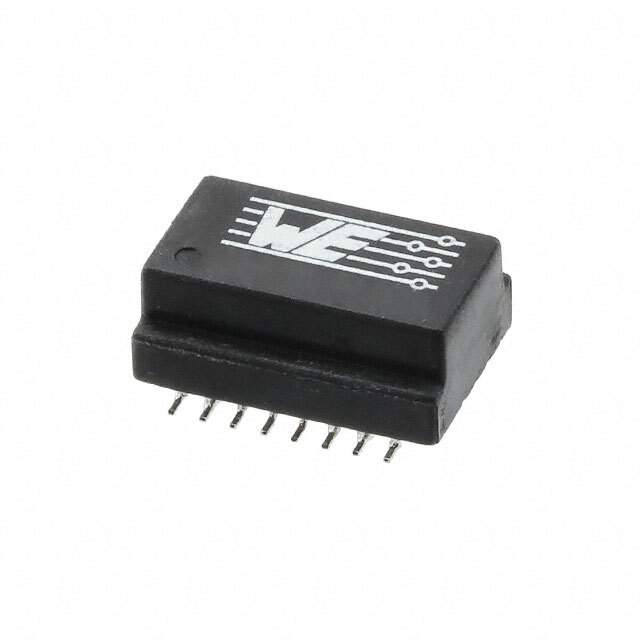

7490100111A Real Image
Same model may have multiple batches, images only for reference.

7490100111A

Part No 7490100111A
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description TRANSFORMER LAN 10/100 SMD / 350µH LAN 10/100 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
7490100111A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Würth Elektronik
Series WE-LAN
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.500" L x 0.346" W (12.70mm x 8.80mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating -40°C ~ 105°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 732-5711-2,732-5711-1,732-5711-6
Standard Package 600
Win Source Part Number 968803-7490100111A
Ultra Librarian 3D Model Ultra Librarian 7490100111A CAD Model

Description

Würth Elektronik's WE-LAN pulse transformer is a LAN 10/100 Base-T transformer that comes in a tape and reel package.

  • Height (Seated): 0.250 inches
  • Standard Package: 600
  • Mounting: SMD (SMT)
  • Operating Temperature: -40°C to 105°C
  • Win Source Part Number: 968803-7490100111A
  • Inductance: 350μH
  • Dimensions: 0.500 inches L x 0.346 inches W (12.70mm x 8.80mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • Series: WE-LAN
