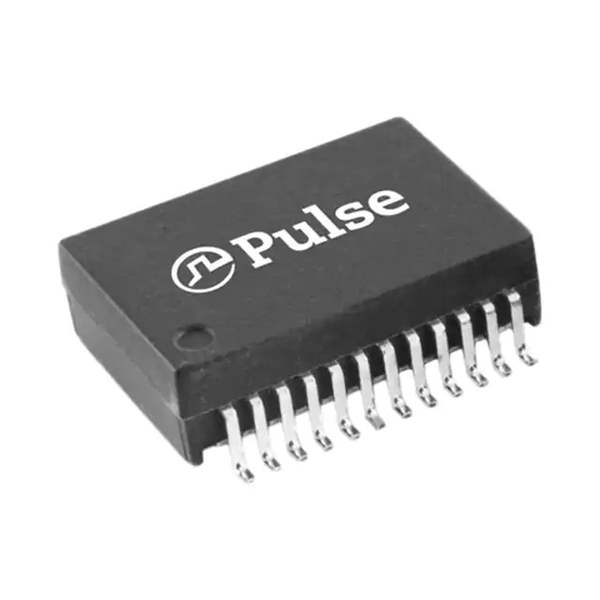

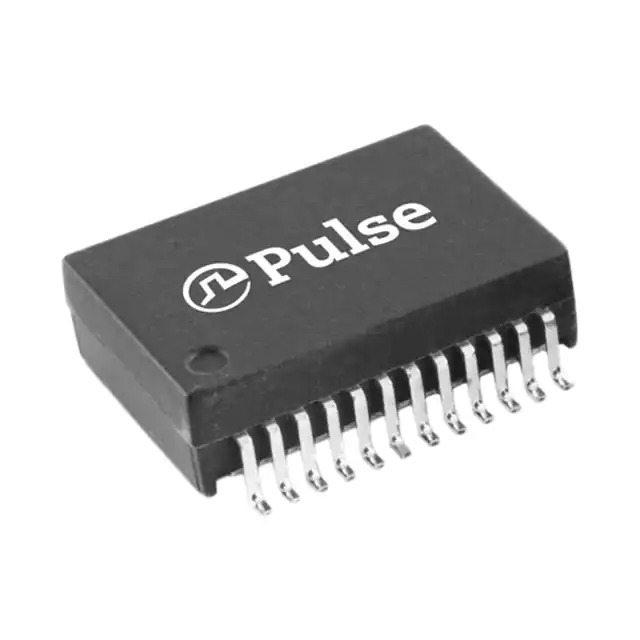

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse Electronics
Series -
Package Tube
Product Status Active
Transformer Type LAN 1000 Base-T
Inductance 350µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.695" L x 0.480" W (17.65mm x 12.20mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 105°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1370280-HM5004ENL
Ultra Librarian 3D Model Ultra Librarian HM5004ENL CAD Model

Description

The 1370280-HM5004ENL is a pulse transformer from Pulse Electronics.

  • Category: Transformers - Pulse Transformers
  • Temperature Range: -40°C to 105°C
  • Mounting Type: Surface Mount
  • Package: Tube
  • Size: 0.695" L x 0.480" W (17.65mm x 12.20mm)
  • Height: 0.225" (5.72mm)
  • Inductance: 350µH
  • Application: LAN 1000 Base-T
  • REACH Compliance: REACH compliant
  • ECCN: EAR99
