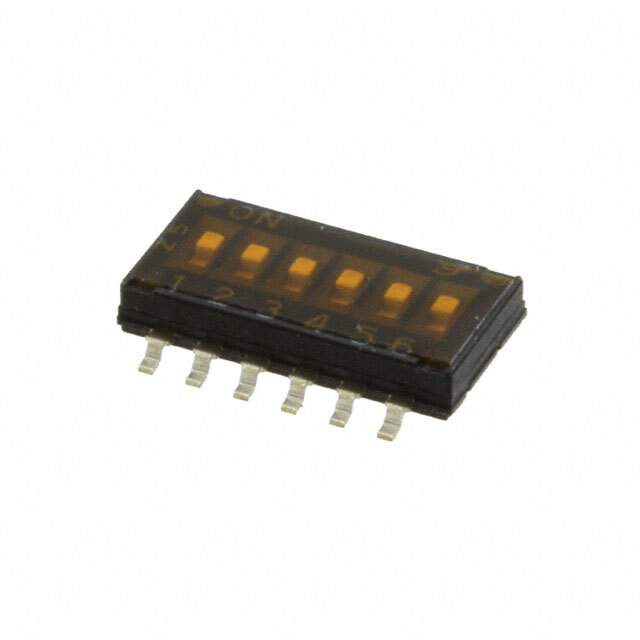

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 5 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Manufacturer Grayhill Inc.
Series 97
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Family Name 97C06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number GH7763CT, GH7763TR, 97C06SRT-ND, GH7763DKR, 2266-97C06SRT
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858714-97C06SRT
Ultra Librarian 3D Model Ultra Librarian 97C06SRT CAD Model

Description

The Grayhill Inc. 97C06SRT is a dip switch SPST position surface mount slide actuator.

  • Operating Temperature: -40°C to 85°C
  • Series: 97
  • Win Source Part Number: 858714-97C06SRT
  • Packaging: Reel of 4000
  • Supply and Demand Status: Limited
  • Production Lead Time: 5 weeks
