Same model may have multiple batches, images only for reference.

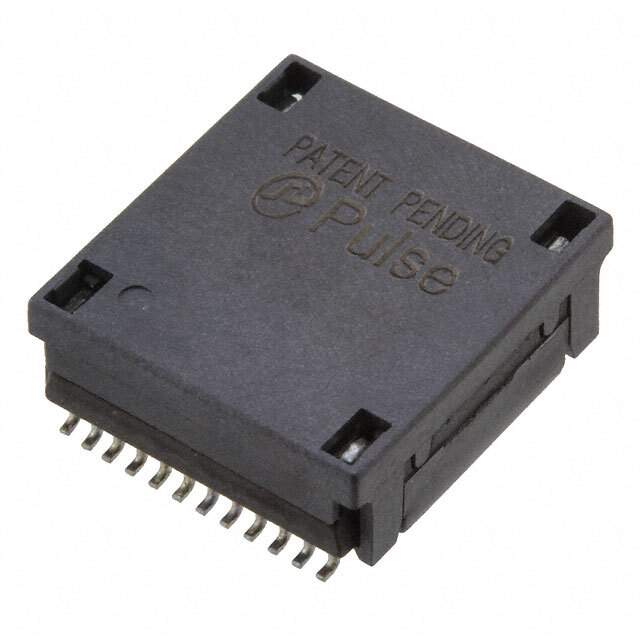

H7019FNL Real Image
Same model may have multiple batches, images only for reference.

H7019FNL

Part No H7019FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER MODULE 10GBASE-T SMD  /  200µH LAN 10G Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
H7019FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Transformer Type LAN 10G Base-T
Inductance 200µH
Mounting SMD (SMT)
Dimension 0.539" L x 0.591" W (13.70mm x 15.00mm)
Height - Seated (Max) 0.230" (5.85mm)
Temperature Range - Operating 0°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-2281-5
Standard Package 35
Win Source Part Number 1061588-H7019FNL
Ultra Librarian 3D Model Ultra Librarian H7019FNL CAD Model

Description

The H7019FNL pulse transformer from Pulse Electronics Network is designed for use in pulse transformers and has an inductance of 200μH.

  • Inductance: 200μH
  • Mounting: SMD (SMT)
  • Package: Tube
  • Height: 0.230 inches (5.85mm)
  • Operating Temperature Range: 0°C to 70°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
