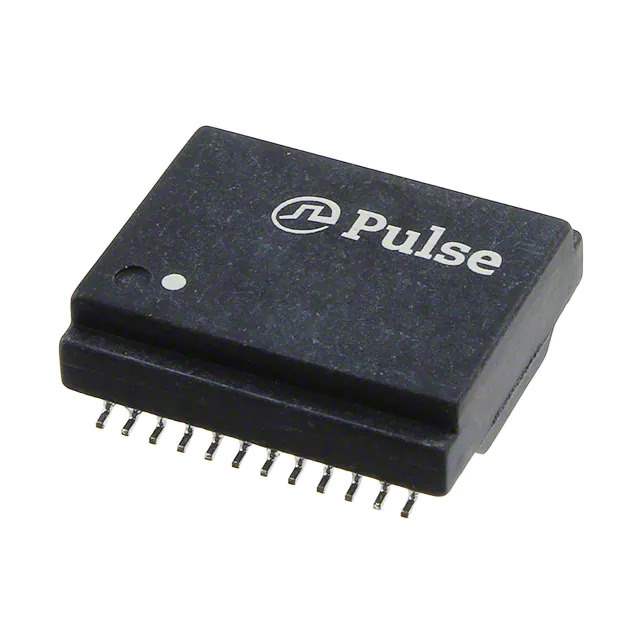

H6062FNL Real Image
Same model may have multiple batches, images only for reference.

H6062FNL

Part No H6062FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350μH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
H6062FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.689" L x 0.600" W (17.50mm x 15.24mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 873173-H6062FNL
Ultra Librarian 3D Model Ultra Librarian H6062FNL CAD Model

Description

The 873173-H6062FNL is a pulse transformer designed for use in transformers - pulse transformers category.

  • Application: LAN 10/100/1000 Base-T applications
  • Inductance: 350μH
  • Operating Temperature: 0°C to 70°C
  • Mounting Type: Surface Mountable
  • Package: Tube
  • Size: 0.689" L x 0.600" W (17.50mm x 15.24mm)
  • Height: 0.225" (5.72mm)
  • Product Status: Active
  • Manufacturer: Pulse
