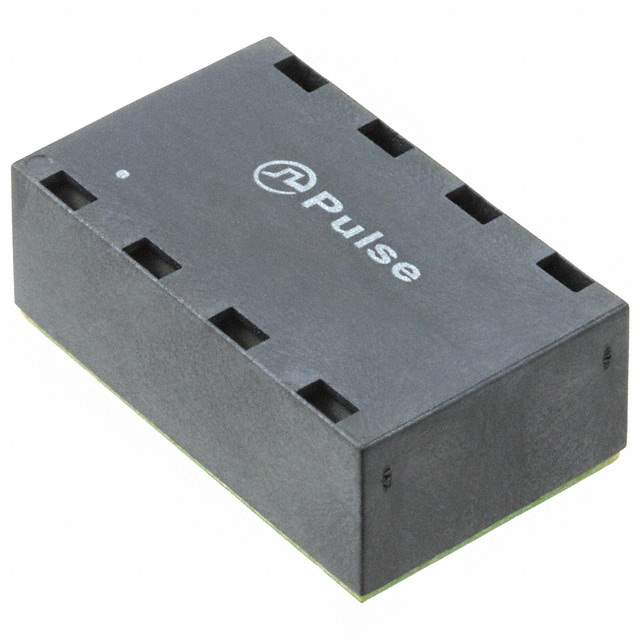

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tray
Mounting SMD (SMT)
Dimension 1.120" L x 0.680" W (28.45mm x 17.27mm)
Height - Seated (Max) 0.438" (11.12mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.35 oz (9.97 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-1458
Standard Package 60
Win Source Part Number 1004131-H5401NL
Ultra Librarian 3D Model Ultra Librarian H5401NL CAD Model

Description

The 1004131-H5401NL is a pulse transformer designed for use in electronic circuits.

  • Mounting Type: Surface Mount
  • Height: 0.438 inches
  • Category: Pulse Transformer
  • Packaging: Tray
  • Transformer Type: Not specified
  • Inductance: Not specified
  • Weight: 0.35 ounces
  • Operating Temperature: 0°C to 70°C
  • Dimensions: 1.120 inches in length and 0.680 inches in width
  • Manufacturer: Pulse Electronics Network
  • ECCN Rating: EAR99
