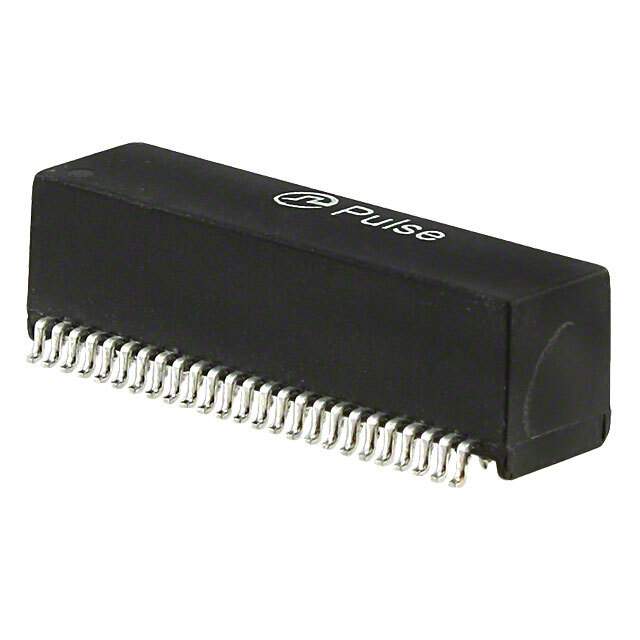

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 1.100" L x 0.297" W (27.94mm x 7.54mm)
Height - Seated (Maximum) 0.341" (8.66mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.06 oz (1.71 g)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 723722-H5020NLT
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H5020NLT CAD Model

Description

The Pulse Electronics Network 723722-H5020NLT is a high-quality isolation and data interface transformer designed for use in electronic circuits.

  • Mounting Style: SMD
  • Category: Transformer
  • Weight: 0.06 oz (1.71 g)
  • Maximum Seated Height: 0.341" (8.66mm)
  • Operating Temperature: 0°C to 70°C
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
