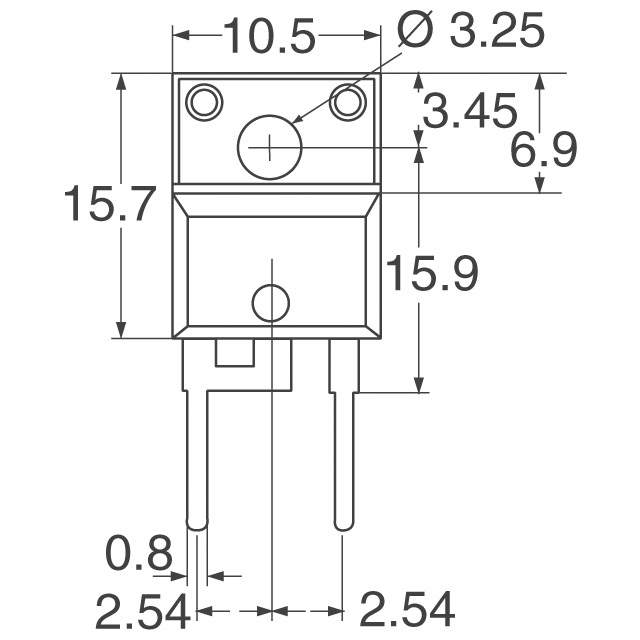

20ETF06FP Real Image
Same model may have multiple batches, images only for reference.

20ETF06FP

Part No 20ETF06FP
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description FAST SOFT RECOVERY RECTIFIER DIODE TO-220 FULLPAK | DIODE GEN PURP 600V 20A TO220FP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Maximum) at If 1.3V at 20A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 160ns
Current - Reverse Leakage at Vr 100μA at 600V
Mounting Style Through Hole
Manufacturer Package TO-220-2 Full Pack
Supplier Device Package TO-220AC Full Pack
Operating Temperature - Junction -40°C ~ 150°C
Family Part Number 20ETF06
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1122931-20ETF06FP
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 20ETF06FP CAD Model

Description

The 20ETF06FP is a standard diode from Vishay Semiconductor Diodes Division.

  • Maximum Voltage Rating: 600V
  • Average Rectified Current: 20A
  • Recovery: Fast, 200mA (Io)
  • Reverse Recovery Time (trr): 160ns
  • Operating Temperature: -40°C to 150°C
  • Package: TO-220AC Full Pack
  • Pack Quantity: 1,000
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Capacitance at Vr: Not provided
