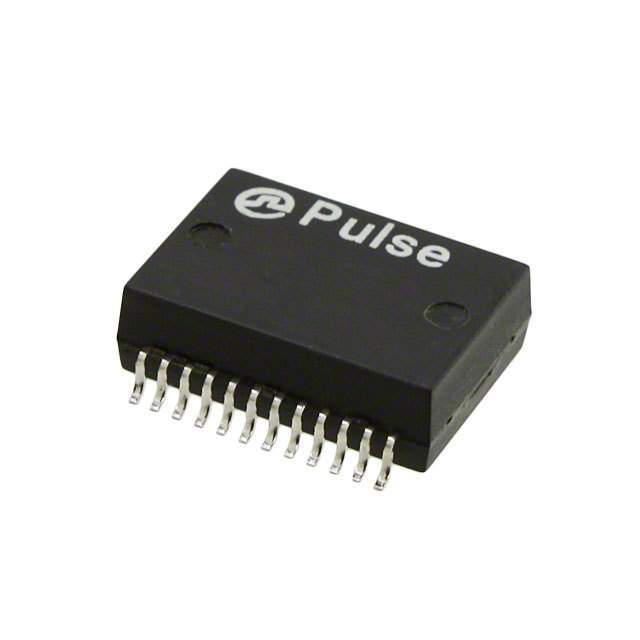

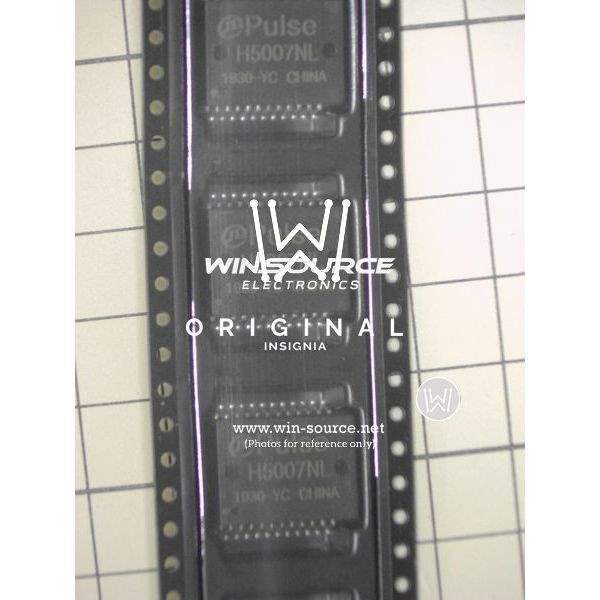

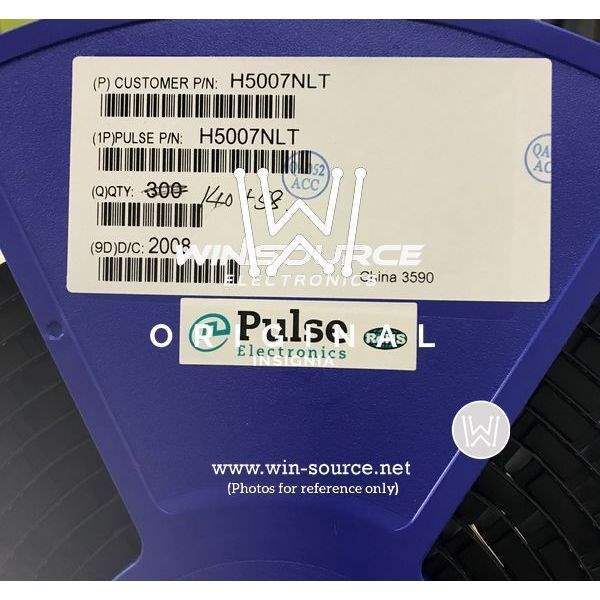

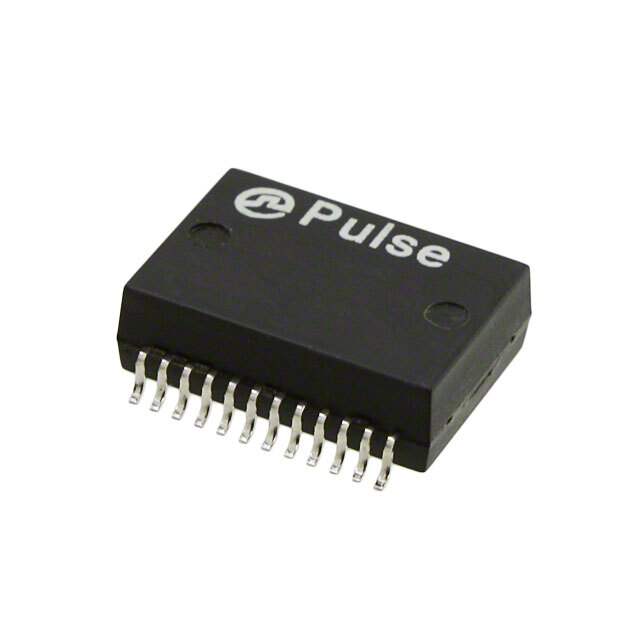

H5007NLT Pulse H5007NLT Real Image H5007NLT real image H5007NLT label picture 2
Same model may have multiple batches, images only for reference.
H5007NLT Pulse H5007NLT Real Image H5007NLT real image H5007NLT label picture 2
H5007NLT Pulse H5007NLT Real Image H5007NLT real image H5007NLT label picture 2
Same model may have multiple batches, images only for reference.

H5007NLT

Part No H5007NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER MODULE GIGABIT 1PORT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.227" (5.76mm)
Weight 0.06 oz (1.71g)
Win Source Part Number 114276-H5007NLT
Family Name H5007
Introduction Date February 14, 2011
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H5007NLT CAD Model

Description

The 114276-H5007NLT is an isolation and data interface transformer manufactured by Pulse Electronics Corporation. It has a maximum seated height of 0.227 inches and is mounted using Surface Mount Technology (SMT). This transformer belongs to the H5007 family and falls under the category of transformers. The supply and demand status for this product is balanced. It has an estimated EOL date of 2026 and is made in China. This transformer is suitable for use in various electronic applications.
