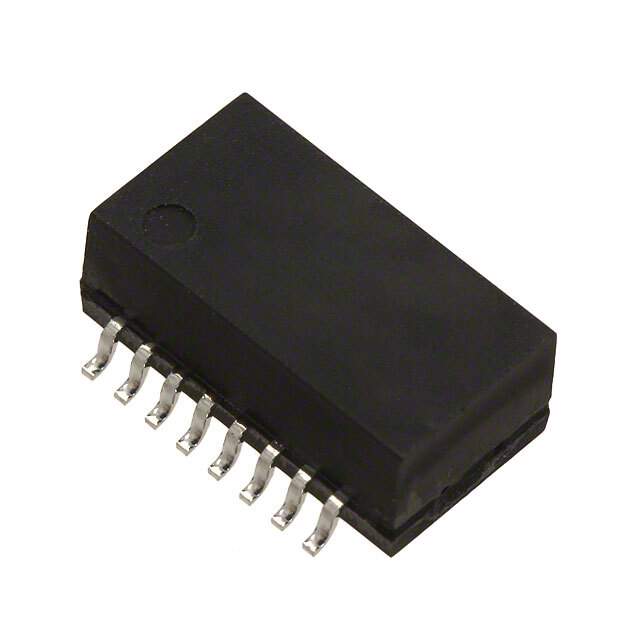

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 100μH
E.T. 1.8V μS
Mounting SMD (SMT)
Height - Seated (Max) 0.210" (5.33mm)
Weight 0.03 oz (0.85g)
Win Source Part Number 133727-PE-65728NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-65728NL CAD Model

Description

The Pulse Electronics Corporation transformer is a high-quality transformer designed for use in electronic devices.

  • Supply and Demand Status: Limited
  • Application: Electronic devices where a high-quality transformer is required
  • Transformer Type: Isolation and data interface (encapsulated)
  • Win Source Part Number: 133727-PE-65728NL
