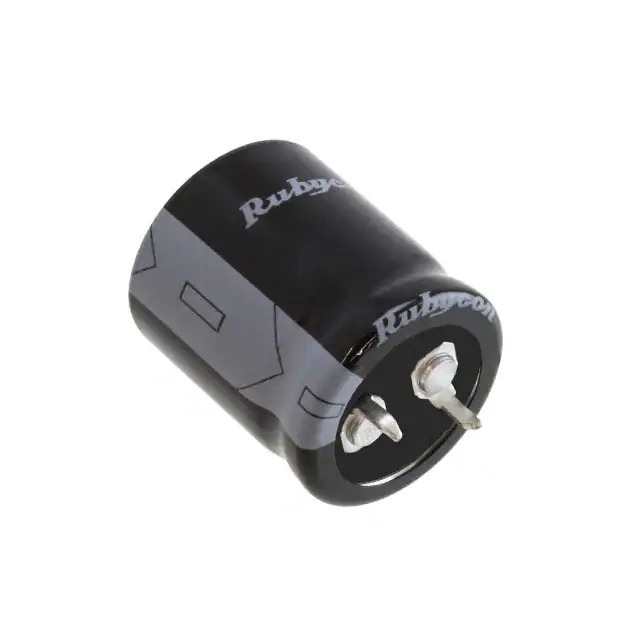

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXG
Package Bulk
Product Status Active
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.74 A @ 120 Hz
Ripple Current @ High Frequency 2.436 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360664-450MXG390MEFCSN35X35
Ultra Librarian 3D Model Ultra Librarian 450MXG390MEFCSN35X35 CAD Model

Description

The 1360664-450MXG390MEFCSN35X35 capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications from Rubycon.

  • Capacitance: 390 µF
  • Voltage Rating: 450 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Package: Radial, Can - Snap-In
  • Diameter: 1.378"
  • Height: 1.457"
  • Lead Spacing: 0.394"
  • Mounting Type: Through Hole
  • Lifetime: 3000 hours @ 105°C
  • Ripple Current (120 Hz): 1.74 A
  • Ripple Current (10 kHz): 2.436 A
