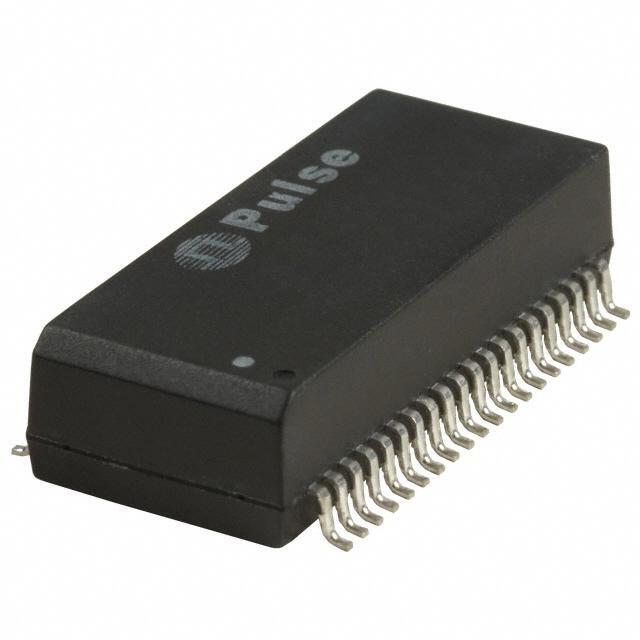

H1164NLT Pulse H1164NLT Real Image H1164NLT label picture
Same model may have multiple batches, images only for reference.
H1164NLT Pulse H1164NLT Real Image H1164NLT label picture
H1164NLT Pulse H1164NLT Real Image H1164NLT label picture
Same model may have multiple batches, images only for reference.

H1164NLT

Part No H1164NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR MODUL AUTO MDI/MDIX 10/100 / Telecom Transformer 40 Terminal Gull Wing SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.230" (5.84mm)
Weight 0.17 oz (4.84g)
Win Source Part Number 112751-H1164NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name H1164
Introduction Date January 16, 2002
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian H1164NLT CAD Model

Description

The H1164NLT is an encapsulated isolation and data interface transformer manufactured by Pulse Electronics Corporation. It has a height of 0.230 inches and a weight of 0.17 oz. The supply and demand status is balanced. The product is not halogen-free and has an estimated EOL date of 2028.
