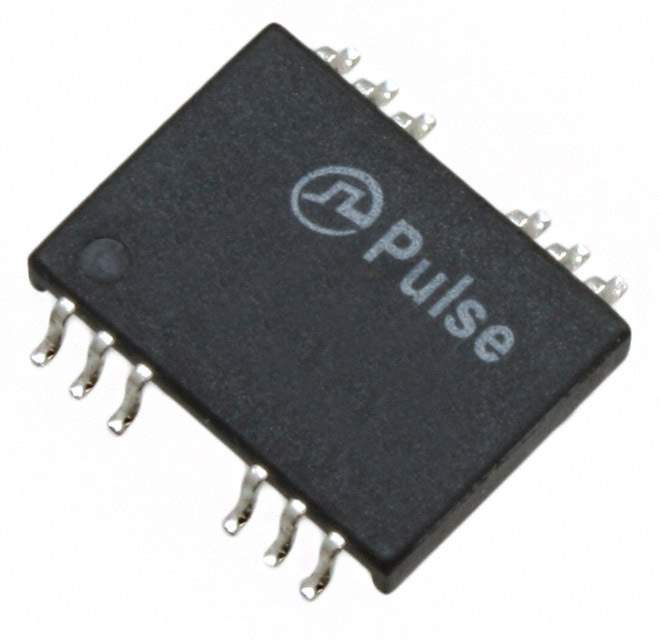

Part No H0022NL
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE PC CARD SNGL LAN 12PCMCIA / LAN Pulse Transformer 1CT:1CT Surface Mount
Datasheet
H0022NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Product Status Obsolete
Transformer Type LAN
Mounting SMD (SMT)
Dimension 0.465" L x 0.340" W (11.81mm x 8.63mm)
Height - Seated (Max) 0.085" (2.16mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.01 oz (0.28 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-1316
Standard Package 40
Win Source Part Number 1031625-H0022NL
Ultra Librarian 3D Model Ultra Librarian H0022NL CAD Model

Description

The Pulse Electronics Network H0022NL is a pulse transformer that is commonly used in LAN applications.

  • Mounting Type: surface mount
  • Standard Package: 40
  • Height: 0.085 inches
  • Weight: 0.01 ounces
  • Temperature Range: 0°C to 70°C
  • Status: currently obsolete
  • Alternative Parts: H1102NL, HX1188NL, and HX1188FNL
