Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 112μH
Mounting SMD (SMT)
Height - Seated (Max) 0.210" (5.33mm)
Weight 0.03 oz (0.85g)
Win Source Part Number 139328-E4001NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian E4001NL CAD Model

Description

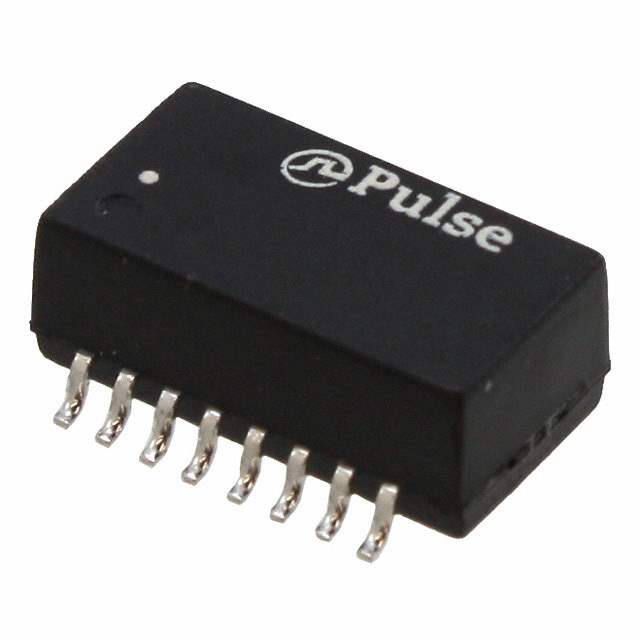

The E4001NL is a high-efficiency signal transformer designed for use in communication and networking applications. Known for its exceptional performance and reliability, this transformer is ideal for a variety of demanding environments.

Features and Benefits

  • Highly efficient energy conversion.
  • Compact footprint for space-saving installation.
  • Robust design for enhanced durability.
  • Wide temperature range tolerance.

Applications

  • Data networking equipment.
  • Telecommunications systems.
  • Industrial control systems.
  • Power distribution networks.

The E4001NL provides outstanding performance with low power loss, ensuring dependable operation and increased longevity in critical communication and network infrastructures.
