Same model may have multiple batches, images only for reference.

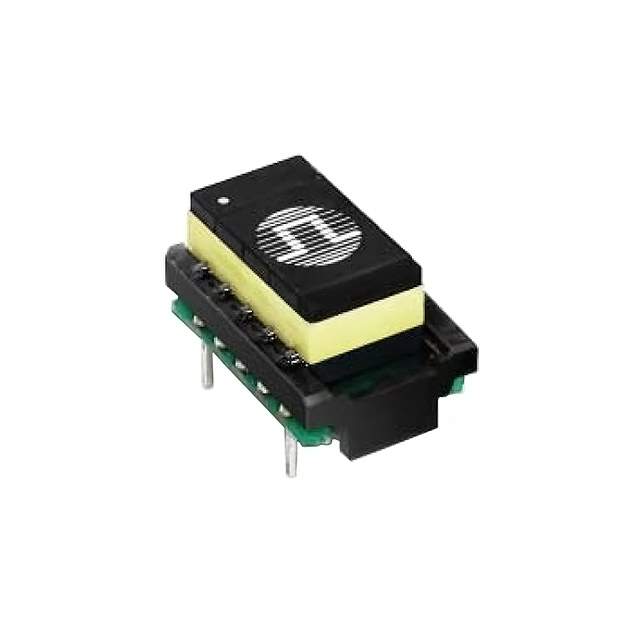

B8842NL Real Image
Same model may have multiple batches, images only for reference.

B8842NL

Part No B8842NL
Manufacturer Pulse
Catalog Pulse Transformers
Description MOD ADSL SPLIT FLTR 2B1Q & 4B3T / Electromechanical Filter 150Ohm 60mADC
Datasheet
B8842NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Series SmartER
Dimension 0.839" L x 0.532" W (21.30mm x 13.50mm)
Height - Seated (Maximum) 0.453" (11.50mm)
Win Source Part Number 769626-B8842NL
Popularity Medium
Supply and Demand Status Limited
Family Name B8842NL
Introduction Date October 16, 2007
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B8842NL CAD Model

Description

The Pulse Electronics Corporation 769626-B8842NL is a SmartER series transformer type inductor with a family name of B8842NL.

  • Series: SmartER
  • Family: B8842NL
  • Dimensions: 0.839" L x 0.532" W (21.30mm x 13.50mm)
  • Height: 0.453" (11.50mm) (seated)
  • Introduction Date: October 16, 2007
  • EOL Date: 2025 (Estimated)
