B4003NL Pulse – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

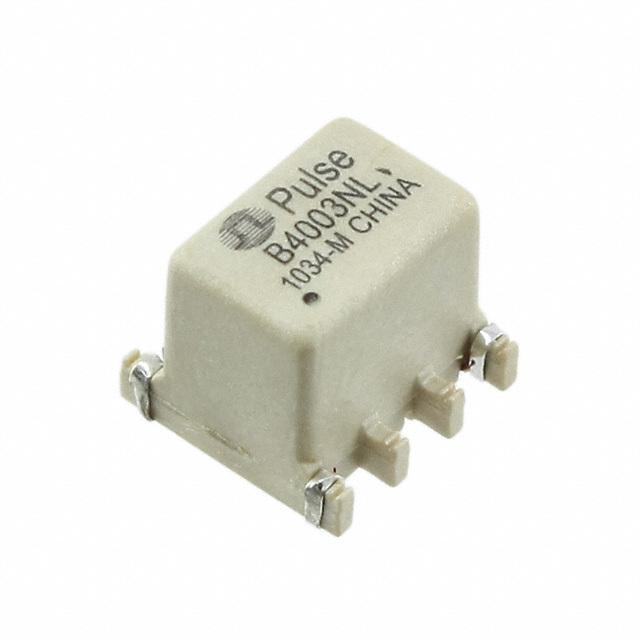

B4003NL

Part No B4003NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Active
Filter Type Signal Line
Number of Lines 2
DC Resistance (DCR) (Max) 1Ohm
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.355" L x 0.345" W (9.02mm x 8.76mm)
Height (Max) 0.300" (7.62mm)
Package / Case Vertical, 8 Flat Lead
Ultra Librarian 3D Model Ultra Librarian B4003NL CAD Model

Description

NULL
