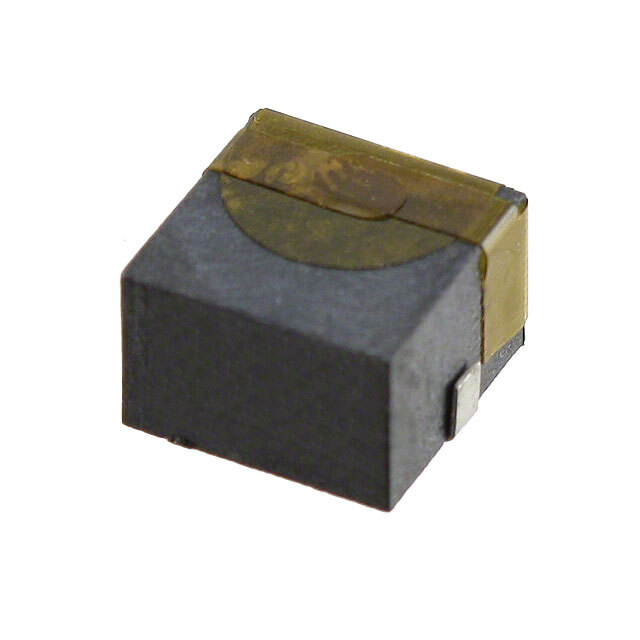

SMS-1308MS-2-R PUI Audio, Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMS-1308MS-2-R

Part No SMS-1308MS-2-R
Manufacturer PUI Audio, Inc.
Catalog Speakers
Description SPEAKER 8OHM 700MW TOP PORT 88DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Technology Magnetic
Type General Purpose
Frequency Range 1.1 kHz ~ 20 kHz
Frequency - Self Resonant 1100Hz
Impedance 8 Ohms
Efficiency - dBA 88.00
Efficiency - Testing 700mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 700 mW
Power - Max 1 W
Port Location Top
Shape Square
Material - Cone Polyimide (PI)
Material - Magnet SmCo
Termination Solder Pads
Size / Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) 0.157\
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1547333-SMS-1308MS-2-R
Ultra Librarian 3D Model Ultra Librarian SMS-1308MS-2-R CAD Model
