Same model may have multiple batches, images only for reference.

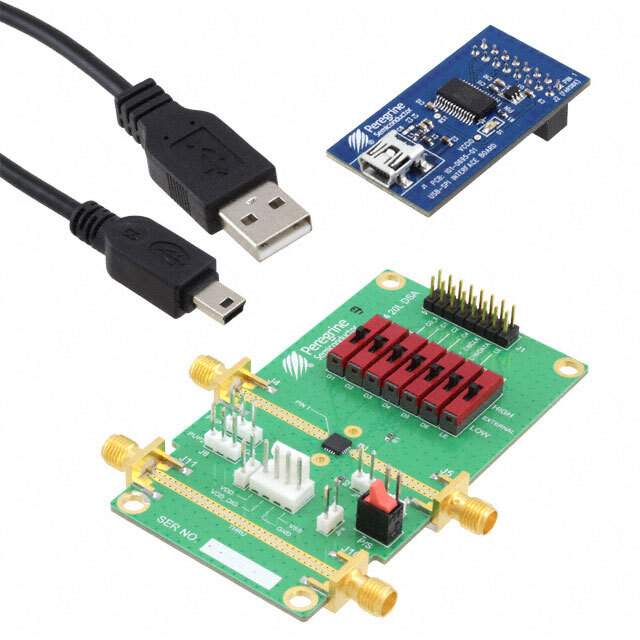

EK4312-13 Real Image
Same model may have multiple batches, images only for reference.

EK4312-13

Part No EK4312-13
Manufacturer pSemi
Catalog RF Evaluation and Development Kits, Boards
Description EVAL BOARD RF DIGITAL STEP ATTEN  /  PE4312 series Attenuator Evaluation Board
Datasheet
EK4312-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr pSemi
Series UltraCMOS®, HaRP™
Package Box
Type Attenuator
Frequency 1MHz ~ 4GHz
For Use With/Related Products PE4312
Supplied Contents Board(s)
Base Product Number EK4312
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Other Names 1046-1097,EK4312-11
Standard Package 1
Win Source Part Number 1138871-EK4312-13
Ultra Librarian 3D Model Ultra Librarian EK4312-13 CAD Model

Description

The UltraCMOS® HaRP™ Attenuator EK4312-13 is a development board kit used for RF evaluation and development.

  • Designed For: PE4312
  • Package: Box
  • Frequency Range: 1MHz to 4GHz
  • Supplied With: Board(s)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Manufacturer: pSemi
  • Also Known As: 1046-1097, EK4312-11
