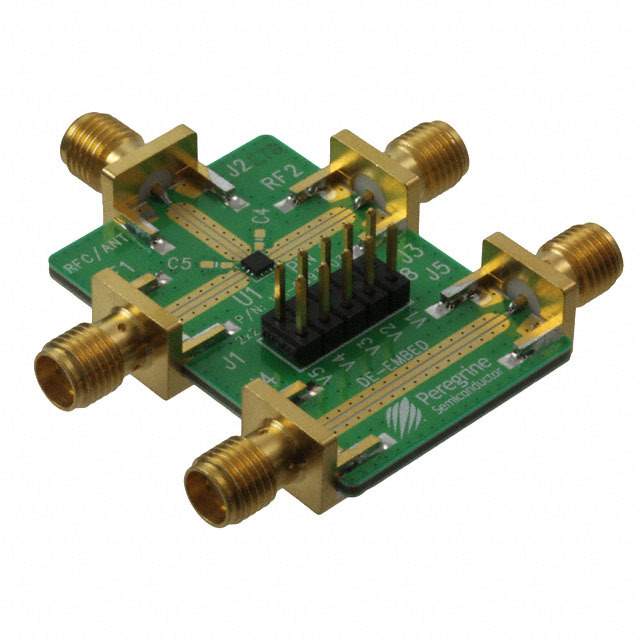

Same model may have multiple batches, images only for reference.

EK42422-01

Name: EK42422-01
Brand: pSemi
SKU: 1140381
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EK42422-01
Manufacturer	pSemi
Catalog	RF Evaluation and Development Kits, Boards
Description	BOARD EVAL SPDT SW FOR PE42422 / PE42422 series Switch, SPDT Evaluation Board
Datasheet	EK42422-01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr	pSemi
Series	UltraCMOS®, HaRP™
Package	Box
Type	Switch, SPDT
Frequency	5MHz ~ 6GHz
For Use With/Related Products	PE42422
Supplied Contents	Board(s)
Base Product Number	EK42422
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8473.30.1180
Other Names	1046-1056,EK4242201
Standard Package	1
Win Source Part Number	1140381-EK42422-01
Ultra Librarian 3D Model	Ultra Librarian EK42422-01 CAD Model

Alternative Products

Description

The 1140381-EK42422-01 is a switch, SPDT development board manufactured by pSemi.

Frequency Range: 5MHz to 6GHz
Series: UltraCMOS, HaRP
Supplied with: board(s)
ECCN: EAR99
MSL Level: 1
Used for: RF evaluation and development
