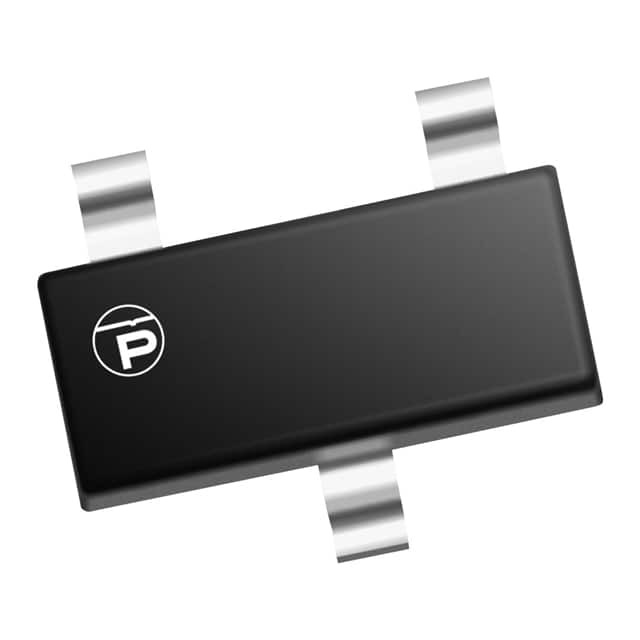

Same model may have multiple batches, images only for reference.
PSM712-LF
Same model may have multiple batches, images only for reference.

PSM712-LF

Part No PSM712-LF
Manufacturer Protek Devices
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19VC SOT23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Protek Devices
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 75pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 890285-PSM712-LF
Ultra Librarian 3D Model Ultra Librarian PSM712-LF CAD Model

Description

The 890285-PSM712-LF is a Zener TVS diode designed for general-purpose circuit protection.

  • Channels: Bidirectional
  • Reverse Standoff Voltage: 12V
  • Power Rating: 600W
  • Peak Pulse Current: 1A
  • Capacitance: 75pF @ 1MHz
  • Temperature Range: -55°C to 150°C
  • Mounting Type: Surface Mountable
  • Package: TO-236-3, SC-59, SOT-23-3
